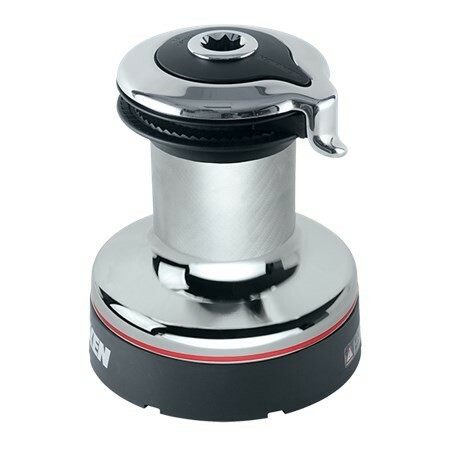

40.2STGNC High Capacity Drum Rigging Winches 500 chrome version
Reel HARKEN CHROME WINCH 40.2STGNC Radial 2 Speed
Hand winch for handling heavy loads.
Self-locking mechanism for 100% control over the load,
allows quick and safe operation by 1 person without the need for assistance.
Chrome-plated drum with friendly-grip surface treatment.
Designed for handling loads up to 500 kg and ropes up to 12 mm in diameter.
Simple operation and high safety during handling - both during winding and lowering.
Compact rolling bearings guarantee high durability and efficiency (low friction under load).
The gears of the internal gears are made of stainless steel .
Purpose: lifting or pulling heavy loads
Drum surface: chrome alloy
Maximum working load (MWL): 5 kN (500 kg)
Number of speeds: 2
Weight: 5.3 kg
Minimum rope diameter Ø: 8 mm
Maximum rope diameter Ø: 12 mm
Max. number of turns of rope 12 mm: 5
Mechanical advantage 1: 13.5:1
Mechanical advantage 2: 39.9:1
Power source: Manual
Harken Industrial™ is a division of Harken, Inc.®, a privately held company with more than 50 years of experience at the technological front of the sailing equipment industry. Building upon this background, Harken Industrial has developed industrial equipment that can withstand the harshest environmental conditions.
