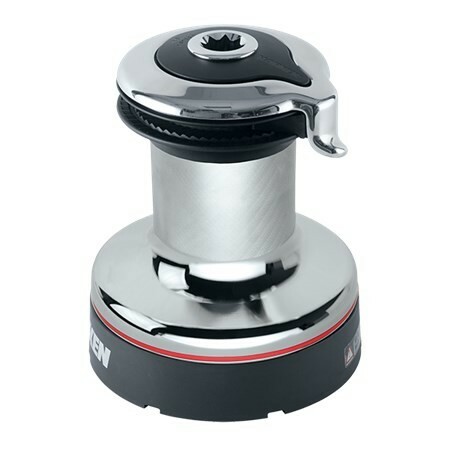

40.2STGNC High Capacity Drum Rigging Winches 500 chrome version

Reel HARKEN CHROME WINCH 40.2STGNC Radial 2 Speed

Hand winch for handling heavy loads.

Self-locking mechanism for 100% control over the load,
allows quick and safe operation by 1 person without the need for assistance.

Chrome-plated drum with friendly-grip surface treatment.
Designed for handling loads up to 500 kg and ropes up to 12 mm in diameter.
Simple operation and high safety during handling - both during winding and lowering.
Compact rolling bearings guarantee high durability and efficiency (low friction under load).
The gears of the internal gears are made of stainless steel .


Purpose: lifting or pulling heavy loads

Drum surface: chrome alloy
Maximum working load (MWL): 5 kN (500 kg)
Configuration: self-locking
Number of speeds: 2
Weight: 5.3 kg
Minimum rope diameter Ø: 8 mm
Maximum rope diameter Ø: 12 mm
Max. number of turns of rope 12 mm: 5
Mechanical advantage 1: 13.5:1
Mechanical advantage 2: 39.9:1
Power source: Manual
