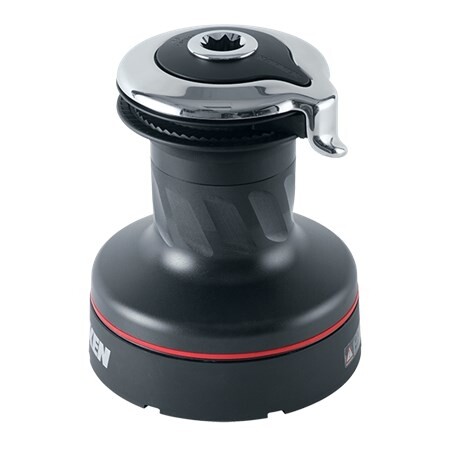

40.2STGNA High Capacity Drum Rigging Winches 500 aluminum versionn

Reel HARKEN ALU WINCH 40.2STGNA Radial 2 Speed

Hand winch for handling heavy loads.

Self-locking mechanism for 100% control over the load,
allows quick and safe operation by 1 person without the need for assistance.

Designed for handling loads up to 500 kg and handling ropes up to 12 mm in diameter.
Simple operation and high safety during handling - both during winding and lowering.
The drum is made of solid duralumin (hardened aluminum) alloy with ribbing.
The patented surface treatment of the drum surface with diagonal ribbing is
the result of years of development and experience of professionals - a balance between
excellent grip (adhesion) and acceptable rope wear is thus achieved. In this way , safety during handling
is also ensured - both during winding and during lowering. Compact rolling bearings guarantee high durability and efficiency (low friction under load).

The gears of the internal gears are made of stainless steel .


Purpose: lifting or pulling heavy loads

Drum surface: duralumin
Maximum working load (MWL): 5 kN (500 kg)
Configuration: self-locking
Number of speeds: 2
Weight: 5.3 kg
Minimum rope diameter Ø: 8 mm
Maximum rope diameter Ø: 12 mm
Max. number of turns of rope 12 mm: 5
Mechanical advantage 1: 13.5:1
Mechanical advantage 2: 39.9:1
Power source: Manual
