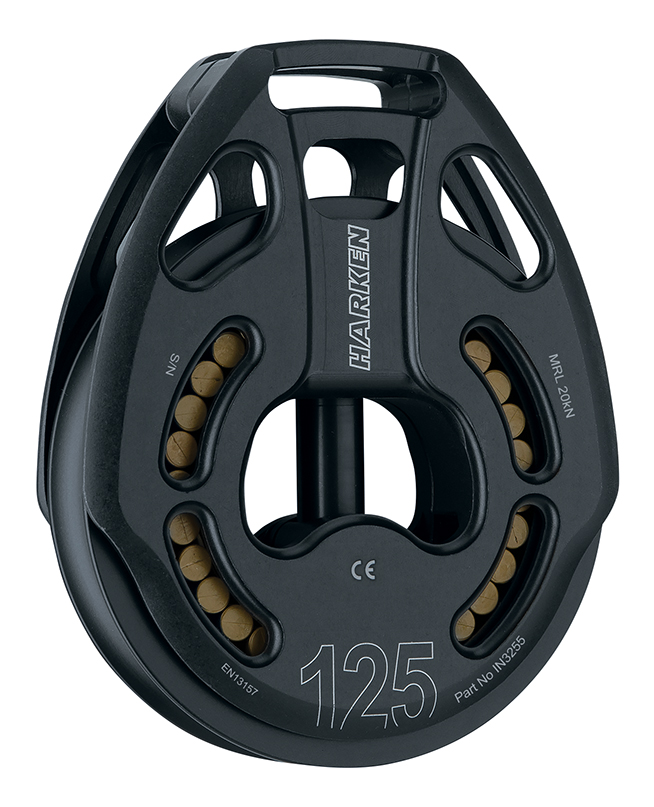

IN3255 125 mm Black Magic Single Pulley - Loop Attachment

With high strength-to-weight ratios and free-rolling, high-load roller bearings, Black Magic Air pulleys handle high dynamic and static loads where friction is an issue. The loop attachment pulley has a removable deadend post for attachment to a padeye. Lashings can also be used. The simple construction requires no lubrication. Simply flush with fresh water to keep bearings free rolling. CE certified. Loop not included.

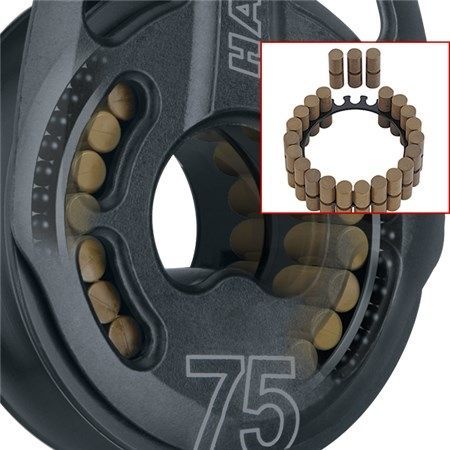

Center cage keeps Delrin® roller bearings separated and parallel to reduce friction. Captive Delrin ball bearings carry side loads.

CE certified to EN13157 for hand-operated lifting equipment.

Sheave Ø (mm) 125 mm
Sheave Ø (in) 4 15/16 in
Length (mm) 163 mm
Length (in) 6 in
Width (mm) 127 mm
Width (in) 5 in
Weight (g) 674 g
Weight (lb) 1.48 lb
Maximum line Ø (mm) 19 mm
Maximum line Ø (in) 3/4 in
Maximum rated load (kN) 20 kN
Maximum rated load (lb) 4495 lb
Rope type Fiber

HARKEN INDUSTRIAL

Harken Industrial™ is a division of Harken, Inc.®, a privately held company with more than 50 years of experience at the technological front of the sailing equipment industry. Building upon this background, Harken Industrial has developed industrial equipment that can withstand the harshest environmental conditions.
