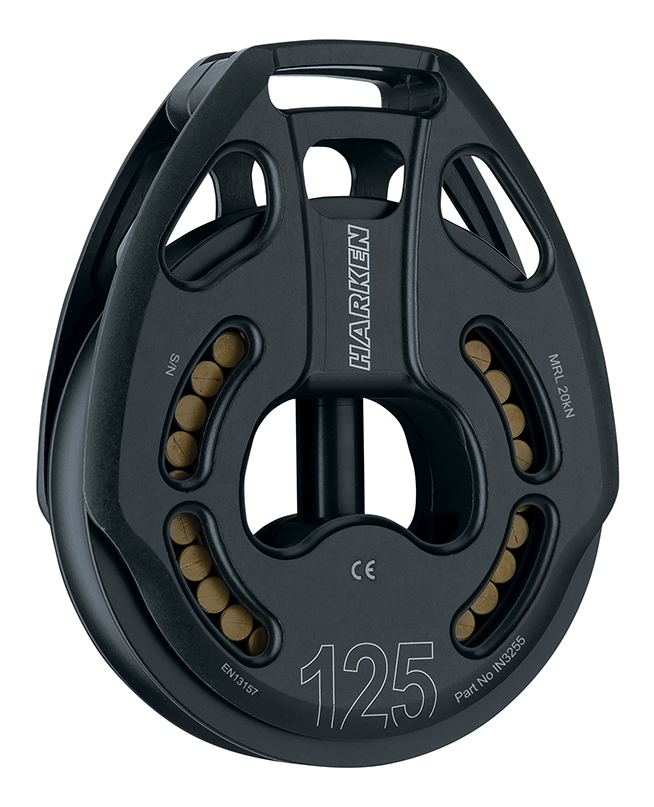

IN3255 Μονή Τροχαλία Black Magic 125 mm - Εξάρτημα βρόχου

With high strength-to-weight ratios and free-rolling, high-load roller bearings, Black Magic Air pulleys handle high dynamic and static loads where friction is an issue. The loop attachment pulley has a removable deadend post for attachment to a padeye. Lashings can also be used. The simple construction requires no lubrication. Simply flush with fresh water to keep bearings free rolling. CE certified. Loop not included.

Center cage keeps Delrin® roller bearings separated and parallel to reduce friction. Captive Delrin ball bearings carry side loads.

CE certified to EN13157 for hand-operated lifting equipment.

Sheave Ø (mm)	125 mm
Sheave Ø (in)	4 15/16 in
Length (mm)	163 mm
Length (in)	6 in
Width (mm)	127 mm
Width (in)	5 in
Weight (g)	674 g
Weight (lb)	1.48 lb
Maximum line Ø (mm)	19 mm
Maximum line Ø (in)	3/4 in
Maximum rated load (kN)	20 kN
Maximum rated load (lb)	4495 lb
Rope type	Fiber
