AUTOCLAM Earthing to post for Overhead Lines

STANDARD(S) :
IEC 61230
USE :
Three-phase (or more) device for short-circuiting and earthing bare overhead lines, with an allowable short-circuit current of 8 kA/1 s to 17.5kA/1s.

Function : earthing for overhead lines with 2 to 5 conductors.

SPECIFICATIONS :
The device is composed of :
- 3 clamps GDC24
- 3 short-circuiting cables
- 1 earthing cable
- 1 earthing clamp

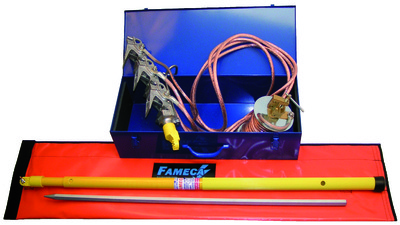

According to models, the device can also be equipped with an insulating stick with soft cover, an earthing rod and a transport case.

Standard models :
Short-circuit cables : 35 mm², 2.75 m
Earth cable : 16 mm² , 16 m
Clamp holder GDC24 equipped with a universal end fitting. This allows the angle to be adjusted, facilitating installation from the pole.
Isc : 8 kA/1s
The short-circuit cable can be aluminium instead of copper (please enquire).

ADVANTAGES :
• The stackable or "piggy-back" design of the GDC325 removes the need for bulky standard clamp holders and can accommodate 2, 3, 4 or 5 clamps. Weight of one line clamp: 0.560 kg
• Ergonomics: all the clamps are in line, making it easier to adjust the position of the device on the cable.
• Patented clamp locking system : only the top clamp can be activated. The clamps are automatically released as soon as they are locked onto the conductor. This allows earthing to be done in the right sequence with no risk of error.
• The upper surface of the clamp nose is lined up with the jaw of the clamp above it. Each clamp facilitates the installation of the next clamp up on the cable.
• The clamps are retrieved using the removal hook fixed onto the clamp holder adapter.

TABLE LEGEND : *Reel with an earth clamp attached. All compositions possible on request with Isc from 8 to 18 kA/1s with all components at choice.

AUTOCLAM8N = Short-circuit cable cross-section: 35 mm² , Short-cricuit cable length (m): 2,75 , Earthing cable length: 16 m , Earth clamp: NB8 , Storage case: no , Stick: no , Stick cover: no , Earth rod: no
AUTOCLAM8NC = Short-circuit cable cross-section: 35 mm² , Short-cricuit cable length (m): 2,75 , Earthing cable length: 16 m , Earth clamp: NB8 , Storage case: TD386 , Stick: TR276U , Stick cover: HTR11100 , Earth rod: 701
AUTOCLAM8T = Short-circuit cable cross-section: 35 mm² , Short-cricuit cable length (m): 2,75 , Earthing cable length: 16 m , Earth clamp: T702* , Storage case: no , Stick: no , Stick cover: no , Earth rod: no
AUTOCLAM8TC = Short-circuit cable cross-section: 35 mm² , Short-cricuit cable length (m): 2,75 , Earthing cable length: 16 m , Earth clamp: T702* , Storage case: TD386 , Stick: TR276U , Stick cover: HTR11100 , Earth rod: 701
AUTOCLAM6xx = Short-circuit cable cross-section: 25 mm² , Short-cricuit cable length (m): au choix , Earthing cable length: au choix
AUTOCLAM8xx = Short-circuit cable cross-section: 35 mm² , Short-cricuit cable length (m): au choix , Earthing cable length: au choix
AUTOCLAM13xx = Short-circuit cable cross-section: 50 mm² , Short-cricuit cable length (m): au choix , Earthing cable length: au choix
AUTOCLAM18xx = Short-circuit cable cross-section: 70 mm² , Short-cricuit cable length (m): au choix , Earthing cable length: au choix
