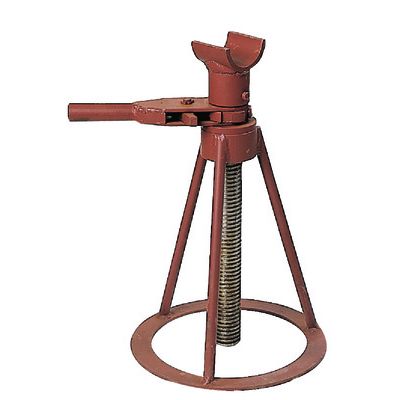

V042 Mechanical reel lifter with central axis

USE :
Reel lifter sold individually.
A pair of V042 reel lifters and an AV042 axle make up a reel lifting set.

SPECIFICATIONS :
Robust jack with central screw and bronze nut.
Steel head, screw, column and base.
Screw head equipped with pin support.
Supplied without spindle bar (to be ordered separately).

ADVANTAGES :
• Heavy duty jack with bronze nut and bolt.
• Steel head, screw, column and base.
• Screw head equipped with shaft support.

V04201T = Max load: 1 t , Min-Max drum Ø: 1.20 - 1.76 m , Min. height (cm): 55 , Stroke: 380 mm , Base Ø: 40 cm
V04202T = Max load: 2 t , Min-Max drum Ø: 1.50 - 2.30 m , Min. height (cm): 70 , Stroke: 500 mm , Base Ø: 57 cm
V04204T = Max load: 4 t , Min-Max drum Ø: 1.90 - 3.10 m , Min. height (cm): 90 , Stroke: 700 mm , Base Ø: 57 cm
V04206T = Max load: 6 t , Min-Max drum Ø: 1.90 - 2.70 m , Min. height (cm): 90 , Stroke: 500 mm , Base Ø: 70 cm
V04210T = Max load: 10 t , Min-Max drum Ø: 2.50 - 3.50 m , Min. height (cm): 120 , Stroke: 600 mm , Base Ø: 77 cm
