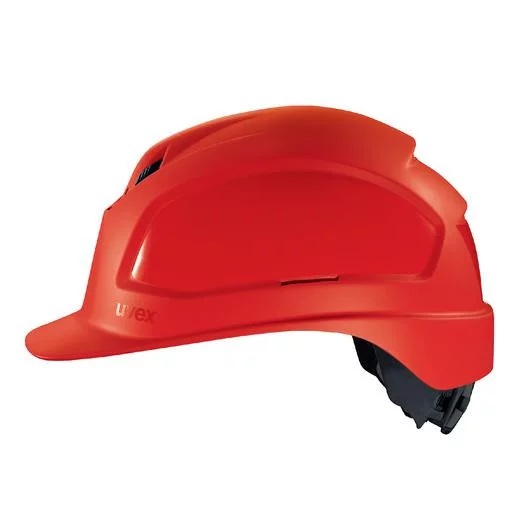

uvex pheos IES safety helmet
uvex pheos IES – the comfort safety helmet with the integrated spectacles clip
Safety spectacles and protective helmets don't always go well together, but this has now changed with the uvex pheos IES: IES stands for "Integrated Eyewear System" and means that your uvex pheos safety glasses can be connected directly with the clip integrated in the helmet. This means that it is always firmly in the position it should be in – and where necessary safely stored in the parking position in the helmet.
General features
Safety helmet with slot on the front for helmet lights
Side Euroslot adapters (30 mm) for attaching earmuffs and the uvex pheos visor system
With long brim
Available in: white, yellow, orange, red, blue
Comfort features
Six-point textile band attachment ensures optimal fit and comfort
Three variable air vents for maximum ventilation
Suspension harness with wheel ratchet for variable width adjustment – also has the option to mount uvex pheos safety spectacles
Protection features
Meets standard EN 397 and additional requirements for very low temperatures (-30 °C) and molten metal (MM) splash
Product name uvex pheos IES
Brand uvex
Product category Safety helmet
Product type Industrial safety helmet
Product family designation uvex pheos
Size 55 cm - 61 cm
Equipment six-point suspension harness, Sweatband
Standard EN 397:2012 + A1:2012
Mechanical risk protection Penetration resistance against sharp and pointed objects, Chin strap opening between 150 and 250 N, Vertical shock absorption
Heat risk protection Flame resistance, Resistant to cold temperatures as low as -30 °C
Chemical risk protection Molten metal (MM)
Brim length Long brim
Ventilation openings with ventilation
Suspension harness variants Suspension harness with wheel ratchet system with Integrated Eyewear System (IES) for attaching safety spectacles
Mountable helmet accessories Safety earmuffs and visors (Euroslots 30 mm), Additional accessories
Visor marking -
Outer shell material High-density polyethylene (HDPE)
Suspension harness material Plastic
uvex technology uvex climazone
Care instructions Plastic parts can be cleaned with water and commercially available cleaning products. The helmet can be disinfected using commercially available disinfectants. Do not clean the helmet using non-approved solvents.
product series -
Gender Unisex
Article number:
White: 9772040
Yellow: 9772140
Orange: 9772240
Red: 9772340
Blue: 9772540
EN 397 Industrial Safety Helmets
MANDATORY tests: IMPACT: Energy spread to the head form must not exceed 5 kN after the fall of an object of 5 kg at 1m high, performed at room temperature: +50°C and at -10°C. PENETRATION: The tip of the test mass used (3 kg from 1m height) must not come into contact with the skull, performed at room temperature: +50°C and at -10°C. FLAMMABILITY: The helmet is exposed to a flame, and it must not burn with flame emission more than 5 seconds after removal of the flame. OPTIONAL tests: EXTREME TEMPERATURE: testing impact and penetration are performed at +150°C, at -20°C or -30 °C temperatures. ELECTRICAL (440V A.C): Protects against a short accidental contact with electric leads under voltage up to 440 Vac. LATERAL DEFORMATION (LD): Protects against lateral compression. The maximum deformation of the helmet should be ≤40 mm. MOLTEN METAL (MM): The helmet is not deformed or penetrated by splashes of molten metal.Details
