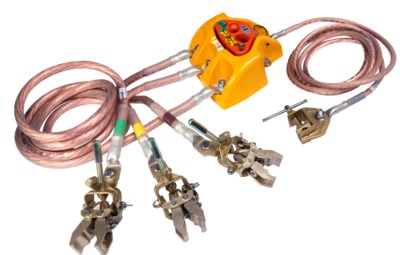

TP2300 Earthing arrester for energy cables

USE :
Provide same protection as an earthing while measuring a circuit insulated from earth.
SPECIFICATIONS :
Weight : 3,6 kg
Weight with earthing set : 13,5 kg
Dimensions : 220 x 200 x 90 mm
Carrying case : 470 x 357 x 176 mm

ADVANTAGES :
• Can provide 3 different functions just by flipping or removing the "box"
- 3 phases isolated from earth
- 3 phases short-circuited and isolated from earth
- Phases connected to the earth through 3 different resistors for phase ID
• No switch
• No need of supply, ideal for long term job
• Compatible with FC2310 for work requiring multiple earthing points
