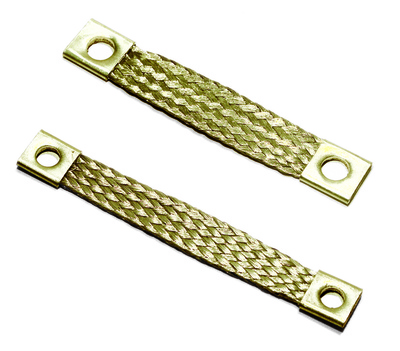

TME High flexible earthing tapes out of tinned copper

SPECIFICATIONS : Manufactured out of flexible tinned copper braids (15/100 or 20/100 mm single wire diameter) with pressed tinned copper ferrules on the ends.

TME16150-85 , Section (mm²): 16 , D1 D2 hole diameter (mm): 8.5 , Length between holes (mm): 150 , A B E terminal sizes (mm): 17 - 17 - 4 , Sold in packs of: 50 - 100 , Weight (kg/100): 3.2
TME16200-85 , Section (mm²): 16 , D1 D2 hole diameter (mm): 8.5 , Length between holes (mm): 200 , A B E terminal sizes (mm): 17 - 17 - 4 , Sold in packs of: 50 - 100 , Weight (kg/100): 3.88
TME16250-85 , Section (mm²): 16 , D1 D2 hole diameter (mm): 8.5 , Length between holes (mm): 250 , A B E terminal sizes (mm): 17 - 17 - 4 , Sold in packs of: 50 - 100 , Weight (kg/100): 4.56
TME25150-85 , Section (mm²): 25 , D1 D2 hole diameter (mm): 8.5 , Length between holes (mm): 150 , A B E terminal sizes (mm): 23 - 25 - 4 , Sold in packs of: 25 - 50 , Weight (kg/100): 6.36
TME25200-85 , Section (mm²): 25 , D1 D2 hole diameter (mm): 8.5 , Length between holes (mm): 200 , A B E terminal sizes (mm): 23 - 25 - 4 , Sold in packs of: 25 - 50 , Weight (kg/100): 7.56
TME25250-85 , Section (mm²): 25 , D1 D2 hole diameter (mm): 8.5 , Length between holes (mm): 250 , A B E terminal sizes (mm): 23 - 25 - 4 , Sold in packs of: 25 - 50 , Weight (kg/100): 8.76
TME10100-65 , Section (mm²): 10 , D1 D2 hole diameter (mm): 6.5 , Length between holes (mm): 100 , A B E terminal sizes (mm): 14 - 15 - 3.5 , Sold in packs of: 50 - 100 , Weight (kg/100): 1.63
TME10150-65 , Section (mm²): 10 , D1 D2 hole diameter (mm): 6.5 , Length between holes (mm): 150 , A B E terminal sizes (mm): 14 - 15 - 3.5 , Sold in packs of: 50 - 100 , Weight (kg/100): 2.11
TME10200-65 , Section (mm²): 10 , D1 D2 hole diameter (mm): 6.5 , Length between holes (mm): 200 , A B E terminal sizes (mm): 14 - 15 - 3.5 , Sold in packs of: 50 - 100 , Weight (kg/100): 2.59
TME10250-65 , Section (mm²): 10 , D1 D2 hole diameter (mm): 6.5 , Length between holes (mm): 250 , A B E terminal sizes (mm): 14 - 15 - 3.5 , Sold in packs of: 50 - 100 , Weight (kg/100): 3.07
TME10300-65 , Section (mm²): 10 , D1 D2 hole diameter (mm): 6.5 , Length between holes (mm): 300 , A B E terminal sizes (mm): 14 - 15 - 3.5 , Sold in packs of: 50 - 100 , Weight (kg/100): 3.55
TME16100-85 , Section (mm²): 16 , D1 D2 hole diameter (mm): 6.5 , Length between holes (mm): 100 , A B E terminal sizes (mm): 17 - 17 - 4 , Sold in packs of: 50 - 100 , Weight (kg/100): 2.52
TME16300-85 , Section (mm²): 16 , D1 D2 hole diameter (mm): 8.5 , Length between holes (mm): 300 , A B E terminal sizes (mm): 17 - 17 - 4 , Sold in packs of: 50 - 100 , Weight (kg/100): 5.24
TME16350-85 , Section (mm²): 16 , D1 D2 hole diameter (mm): 8.5 , Length between holes (mm): 350 , A B E terminal sizes (mm): 17 - 17 - 4 , Sold in packs of: 50 - 100 , Weight (kg/100): 5.92
TME16400-85 , Section (mm²): 16 , D1 D2 hole diameter (mm): 8.5 , Length between holes (mm): 400 , A B E terminal sizes (mm): 17 - 17 - 4 , Sold in packs of: 50 - 100 , Weight (kg/100): 6.6
TME25100-85 , Section (mm²): 16 , D1 D2 hole diameter (mm): 8.5 , Length between holes (mm): 100 , A B E terminal sizes (mm): 17 - 17 - 4 , Sold in packs of: 50 - 100 , Weight (kg/100): 5.16
TME25300-85 , Section (mm²): 25 , D1 D2 hole diameter (mm): 8.5 , Length between holes (mm): 300 , A B E terminal sizes (mm): 23 - 25 - 4 , Sold in packs of: 25 - 50 , Weight (kg/100): 9.96
TME25350-85 , Section (mm²): 25 , D1 D2 hole diameter (mm): 8.5 , Length between holes (mm): 350 , A B E terminal sizes (mm): 23 - 25 - 4 , Sold in packs of: 25 - 50 , Weight (kg/100): 11.16
TME25400-85 , Section (mm²): 25 , D1 D2 hole diameter (mm): 8.5 , Length between holes (mm): 400 , A B E terminal sizes (mm): 23 - 25 - 4 , Sold in packs of: 25 - 50 , Weight (kg/100): 12.36
TME35100-105 , Section (mm²): 35 , D1 D2 hole diameter (mm): 10.5 , Length between holes (mm): 100 , A B E terminal sizes (mm): 27 - 25 - 4.2 , Sold in packs of: 25 - 50 , Weight (kg/100): 6.7
TME35150-105 , Section (mm²): 35 , D1 D2 hole diameter (mm): 10.5 , Length between holes (mm): 150 , A B E terminal sizes (mm): 27 - 25 - 4.2 , Sold in packs of: 25 - 50 , Weight (kg/100): 8.42
TME35200-85 , Section (mm²): 35 , D1 D2 hole diameter (mm): 10.5 , Length between holes (mm): 200 , A B E terminal sizes (mm): 27 - 25 - 4.2 , Sold in packs of: 25 - 50 , Weight (kg/100): 10.13
TME35300-105 , Section (mm²): 35 , D1 D2 hole diameter (mm): 10.5 , Length between holes (mm): 300 , A B E terminal sizes (mm): 27 - 25 - 4.2 , Sold in packs of: 25 - 50 , Weight (kg/100): 13.56
TME35250-105 , Section (mm²): 35 , D1 D2 hole diameter (mm): 10.5 , Length between holes (mm): 250 , A B E terminal sizes (mm): 27 - 25 - 4.2 , Sold in packs of: 25 - 50 , Weight (kg/100): 11.85
TME35350-105 , Section (mm²): 35 , D1 D2 hole diameter (mm): 10.5 , Length between holes (mm): 350 , A B E terminal sizes (mm): 27 - 25 - 4.2 , Sold in packs of: 25 - 50 , Weight (kg/100): 15.28
TME16350-85 , Section (mm²): 16 , D1 D2 hole diameter (mm): 8.5 , Length between holes (mm): 350 , A B E terminal sizes (mm): 17 - 17 - 4 , Sold in packs of: 50 - 100 , Weight (kg/100): 5.92
TME16400-85 , Section (mm²): 16 , D1 D2 hole diameter (mm): 8.5 , Length between holes (mm): 400 , A B E terminal sizes (mm): 17 - 17 - 4 , Sold in packs of: 50 - 100 , Weight (kg/100): 6.6
TME25100-85 , Section (mm²): 16 , D1 D2 hole diameter (mm): 8.5 , Length between holes (mm): 100 , A B E terminal sizes (mm): 17 - 17 - 4 , Sold in packs of: 50 - 100 , Weight (kg/100): 5.16
TME25300-85 , Section (mm²): 25 , D1 D2 hole diameter (mm): 8.5 , Length between holes (mm): 300 , A B E terminal sizes (mm): 23 - 25 - 4 , Sold in packs of: 25 - 50 , Weight (kg/100): 9.96
TME25350-85 , Section (mm²): 25 , D1 D2 hole diameter (mm): 8.5 , Length between holes (mm): 350 , A B E terminal sizes (mm): 23 - 25 - 4 , Sold in packs of: 25 - 50 , Weight (kg/100): 11.16
TME25400-85 , Section (mm²): 25 , D1 D2 hole diameter (mm): 8.5 , Length between holes (mm): 400 , A B E terminal sizes (mm): 23 - 25 - 4 , Sold in packs of: 25 - 50 , Weight (kg/100): 12.36
TME35100-105 , Section (mm²): 35 , D1 D2 hole diameter (mm): 10.5 , Length between holes (mm): 100 , A B E terminal sizes (mm): 27 - 25 - 4.2 , Sold in packs of: 25 - 50 , Weight (kg/100): 6.7
TME35150-105 , Section (mm²): 35 , D1 D2 hole diameter (mm): 10.5 , Length between holes (mm): 150 , A B E terminal sizes (mm): 27 - 25 - 4.2 , Sold in packs of: 25 - 50 , Weight (kg/100): 8.42
TME35200-85 , Section (mm²): 35 , D1 D2 hole diameter (mm): 10.5 , Length between holes (mm): 200 , A B E terminal sizes (mm): 27 - 25 - 4.2 , Sold in packs of: 25 - 50 , Weight (kg/100): 10.13
TME35300-105 , Section (mm²): 35 , D1 D2 hole diameter (mm): 10.5 , Length between holes (mm): 300 , A B E terminal sizes (mm): 27 - 25 - 4.2 , Sold in packs of: 25 - 50 , Weight (kg/100): 13.56
TME35250-105 , Section (mm²): 35 , D1 D2 hole diameter (mm): 10.5 , Length between holes (mm): 250 , A B E terminal sizes (mm): 27 - 25 - 4.2 , Sold in packs of: 25 - 50 , Weight (kg/100): 11.85
TME35350-105 , Section (mm²): 35 , D1 D2 hole diameter (mm): 10.5 , Length between holes (mm): 350 , A B E terminal sizes (mm): 27 - 25 - 4.2 , Sold in packs of: 25 - 50 , Weight (kg/100): 15.28
TME35400-105 , Section (mm²): 35 , D1 D2 hole diameter (mm): 10.5 , Length between holes (mm): 400 , A B E terminal sizes (mm): 27 - 25 - 4.2 , Sold in packs of: 25 - 50 , Weight (kg/100): 17
TME50100-105 , Section (mm²): 50 , D1 D2 hole diameter (mm): 10.5 , Length between holes (mm): 100 , A B E terminal sizes (mm): 33 - 30 - 5 , Sold in packs of: 25 , Weight (kg/100): 9.85
TME50150-105 , Section (mm²): 50 , D1 D2 hole diameter (mm): 10.5 , Length between holes (mm): 150 , A B E terminal sizes (mm): 33 - 30 - 5 , Sold in packs of: 25 , Weight (kg/100): 12.15
TME50200-105 , Section (mm²): 50 , D1 D2 hole diameter (mm): 10.5 , Length between holes (mm): 200 , A B E terminal sizes (mm): 33 - 30 - 5 , Sold in packs of: 25 , Weight (kg/100): 14.5
TME50250-105 , Section (mm²): 50 , D1 D2 hole diameter (mm): 10.5 , Length between holes (mm): 250 , A B E terminal sizes (mm): 33 - 30 - 5 , Sold in packs of: 25 , Weight (kg/100): 16.8
TME50300-105 , Section (mm²): 50 , D1 D2 hole diameter (mm): 10.5 , Length between holes (mm): 300 , A B E terminal sizes (mm): 33 - 30 - 5 , Sold in packs of: 25 , Weight (kg/100): 19.1
TME50350-105 , Section (mm²): 50 , D1 D2 hole diameter (mm): 10.5 , Length between holes (mm): 350 , A B E terminal sizes (mm): 33 - 30 - 5 , Sold in packs of: 25 , Weight (kg/100): 21.45
TME50400-105 , Section (mm²): 50 , D1 D2 hole diameter (mm): 10.5 , Length between holes (mm): 400 , A B E terminal sizes (mm): 33 - 30 - 5 , Sold in packs of: 25 , Weight (kg/100): 23.75
TME50500-105 , Section (mm²): 50 , D1 D2 hole diameter (mm): 10.5 , Length between holes (mm): 500 , A B E terminal sizes (mm): 33 - 30 - 5 , Sold in packs of: 25 , Weight (kg/100): 28.4
TME70150-13 , Section (mm²): 70 , D1 D2 hole diameter (mm): 13 , Length between holes (mm): 150 , A B E terminal sizes (mm): 32 - 30 - 5.5 , Sold in packs of: 25 , Weight (kg/100): 15.75
TME70200-13 , Section (mm²): 70 , D1 D2 hole diameter (mm): 13 , Length between holes (mm): 200 , A B E terminal sizes (mm): 32 - 30 - 5.5 , Sold in packs of: 25 , Weight (kg/100): 19.7
TME70250-13 , Section (mm²): 70 , D1 D2 hole diameter (mm): 13 , Length between holes (mm): 250 , A B E terminal sizes (mm): 32 - 30 - 5.5 , Sold in packs of: 25 , Weight (kg/100): 22.4
TME70300-13 , Section (mm²): 70 , D1 D2 hole diameter (mm): 13 , Length between holes (mm): 300 , A B E terminal sizes (mm): 32 - 30 - 5.5 , Sold in packs of: 25 , Weight (kg/100): 25.7
TME70400-13 , Section (mm²): 70 , D1 D2 hole diameter (mm): 13 , Length between holes (mm): 400 , A B E terminal sizes (mm): 32 - 30 - 5.5 , Sold in packs of: 25 , Weight (kg/100): 32.35
TME70500-13 , Section (mm²): 70 , D1 D2 hole diameter (mm): 13 , Length between holes (mm): 500 , A B E terminal sizes (mm): 32 - 30 - 5.5 , Sold in packs of: 25 , Weight (kg/100): 39
