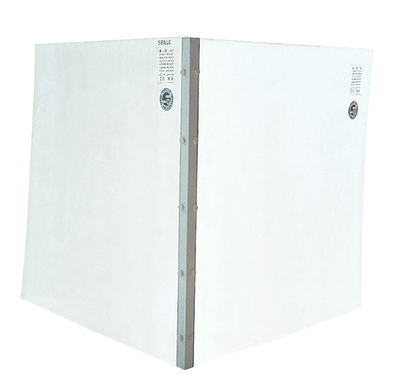

TE08GM Insulating screen 20 kV for substation, large 2x1 x0.003m

USE : Insulating panels to separate busbars, protective device to prevent MV switch-disconnectors from being closed, protective panel to separate working areas, insulating baseplate for transformer

SPECIFICATIONS :
Material : fibreglass reinforced polyester
Fire classification : M3 self-extinguishing UL94V-0
Dielectric test : according to standard IEC 60243-1
Mechanical test : according to standard ISO 178/527/604/179 and 180
Colour : white.
Assembling of combined screens is done with insulating corner pieces (ref. TC144C) and bolts (ref. TC144B).

TABLE LEGEND : Other dimensions and operating voltages available onr equest.
