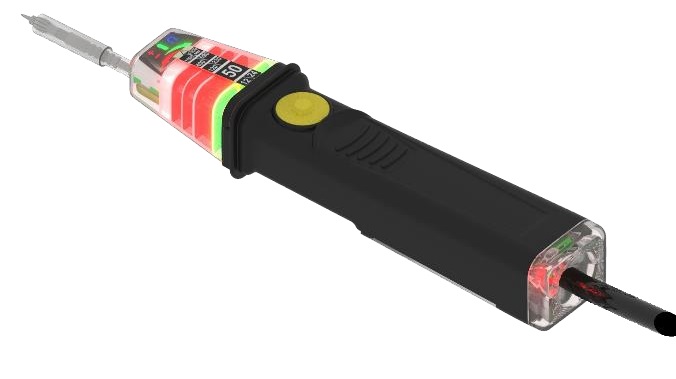

TAGLITE Low Voltage Detector 12 to 1000V AC / 1500 V DC

STANDARD
Standard: IEC 61243-3.
Compliant, enables compliance with the requirements of the code of practice general safety instructions UTE C 18-510 Electrical and Standard Operating Electrical NF EN 50110-1.

USE
The Low Voltage Detector allows the following functions to be implemented on both indoor and overhead installations:
• Check for the proving dead operation
• Control voltage levels from 12 to 1000V AC / 1500 V DC
• Polarity test on DC voltage
• Discrimination phase / neutral
• Phase indication (unipolar)
• Phase rotation
• Continuity check
• Functional self-test is performed which turn on all leds and emitting audible signal
• Measuring point lighting

ADVANTAGES
• Optimised visual indications: Visibility of indications in all working positions:
- 360° forward indication
- Rear visual indications
• Innovative IP2X system: Trigger system on the back of the device to release the thumb
• Safe IP2X sheath: 2-speed IP2X system with double-diameter test probes:
- Retraction of the first 5 mm through the trigger on the back of the device
- Push the sheath to retract remaining length
• Easy-to-reach and ergonomic button: Prominent button for easy gripping with insulating gloves.
• Ultra-flexible and robust cable: Ultra-flexible and robust double insulated cable without shape memory.
• AA battery with quick access: Increased autonomy with its 2 AA size batteries (Lithium batteries in option), accessible from the compartment at the back of the device.

TECHNICAL SPECIFICATIONS
Reference
Mechanical version
User manual
Dimensions
TAGLITERIFE
With IPX system
Pack F*
In the bag: 280 x 70 x 50mm
• 1 carrying bag
• User manual and user instruction / test certificate on the back of the bag
• Standard: IEC 61243-3
• Overvoltage category: CAT IV 1000 V
• Protection class: IP 65 according to IEC 60529 (DIN 40050): Can be used in wet conditions: outdoor use.
• Rated voltage range: 12 -1000 V AC / 12 - 1500 V DC
• Current consumption, measuring circuit: AC/DC max. < 3.5mA
• Polarity display: "+“ and “–” symbol
• Display voltage levels 12, 24, 50, 120, 230, 400, 690, 1000 V AC/DC and 1500 V DC
• Nominal frequency range: 15 to 60 Hz
• Phase display: Un ≥ 200 V, 50&60 Hz
• Test current, continuity test: max. 2 μA Test range, cross resistance: 0 - 100 Ω
• Acoustic sound level: 55 dB
• Turning on the device in measurement voltage: ≥ 12V
• Dedicated light indication for voltage upper that ELV (Extra Low Voltage) corresponds to > 50 V AC or > 120 V DC
• Built-in self test
• Power supply: 2 x LR06/AA batteries
• Weight: about 285g
• Connection cable with double silicone insulation : approximately 1200mm length
• Operating and storage temperature range: -15°C to +45°C and relative air humidity: 20% to 96% (climate category N).

ACCESSORIES
• 2 LR06 / AA batteries
• 1 carrying bag
• User manual and user instruction / test certificate on the back of the bag

Reference Mechanical version User manual Dimensions
TAGLITERIFE With IPX system Pack F* In the bag: 280 x 70 x 50mm
