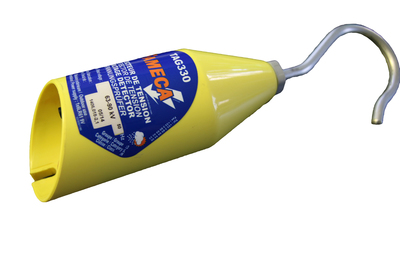

TAG330 Electronic HV no-voltage tester, from 50 to 765 kV
STANDARD(S) : IEC 61243-1
USE : Electronic HV no-voltage tester, from 50 to 765 kV
SPECIFICATIONS :
- Mains frequency range: 16.66; 50 or 60 Hz, please specify when ordering.
- Indication of the absence of voltage and the correct operation of the device by a green LED.
- Very sturdy polycarbonate casing.
- Self-test device.
- Electronic cut-out if battery drops under threshold voltage of 8V.
- Can be used in all weathers.
- Temperature range: from -25℃ to +55℃
- Power supply: one 9V alkaline battery.
Device comes in a metal case with hooks ø 60 and 120 mm and straight electrode 100 mm.
ADVANTAGES :
Devices features an electronic detection system with miniature gas discharge tubes.
This original configuration gives it very high performances, especially in the case of high induction and/or parasitic electric fields.
TABLE LEGEND : Other settings available with a ratio of 1/3 up to 735 kV. Available in 60 Hz.
30F063090C5 = Voltage range: 63 kV to 90 kV , Colour: Yellow
330F150150C5 = Voltage range: 150 kV , Colour: Red
330F225400C5 = Voltage range: 225 kV to 400 kV , Colour: Red
330F400765C5 = Voltage range: 400 kV to 765 kV , Colour: Red
