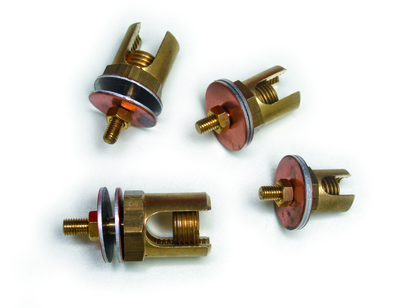

SEFRBM Brass cable holders with bimetallic washers
SEF25-6/2RBM = Section (mm²): 25 , Min/max conductor diameter (mm): 3 - 6 , Thread under base: M6 , Max thickness (mm): 6 , Sold in packs of: 50 , Weight (kg/100): 4.2
SEF35-6/2RBM = Section (mm²): 35 , Min/max conductor diameter (mm): 4 - 8 , Thread under base: M6 , Max thickness (mm): 6 , Sold in packs of: 50 , Weight (kg/100): 4.8
SEF50-6/2RBM = Section (mm²): 50 , Min/max conductor diameter (mm): 7 - 10 , Thread under base: M6 , Max thickness (mm): 6 , Sold in packs of: 50 , Weight (kg/100): 6.4
SEF95-6/2RBM = Section (mm²): 95 , Min/max conductor diameter (mm): 8 - 12 , Thread under base: M6 , Max thickness (mm): 6 , Sold in packs of: 25 , Weight (kg/100): 8.4
SEF95-6/RBM/30 = Section (mm²): 95 , Min/max conductor diameter (mm): 8 - 12 , Thread under base: M6 , Max thickness (mm): 12 , Sold in packs of: 25 , Weight (kg/100): 8.6
SEF120-6/2RBM = Section (mm²): 120 , Min/max conductor diameter (mm): 10 - 14 , Thread under base: M6 , Max thickness (mm): 12 , Sold in packs of: 25 , Weight (kg/100): 10.6
SEF150-6/2RBM = Section (mm²): 150 , Min/max conductor diameter (mm): 10 - 16 , Thread under base: M6 , Max thickness (mm): 12 , Sold in packs of: 25 , Weight (kg/100): 15.8
SEF185-6/2RBM = Section (mm²): 185 , Min/max conductor diameter (mm): 12 - 18 , Thread under base: M6 , Max thickness (mm): 12 , Sold in packs of: 25 , Weight (kg/100): 16.8
SEF25-7/2RBM = Section (mm²): 25 , Min/max conductor diameter (mm): 3 - 6 , Thread under base: M7 , Max thickness (mm): 12 , Sold in packs of: 50 , Weight (kg/100): 4.3
SEF35-7/2RBM = Section (mm²): 35 , Min/max conductor diameter (mm): 4 - 8 , Thread under base: M7 , Max thickness (mm): 12 , Sold in packs of: 50 , Weight (kg/100): 4.9
SEF50-7/2RBM = Section (mm²): 50 , Min/max conductor diameter (mm): 7 - 10 , Thread under base: M7 , Max thickness (mm): 12 , Sold in packs of: 50 , Weight (kg/100): 6.5
SEF95-7/2RBM = Section (mm²): 95 , Min/max conductor diameter (mm): 8 - 12 , Thread under base: M7 , Max thickness (mm): 12 , Sold in packs of: 25 , Weight (kg/100): 8.5
SEF120-7/2RBM = Section (mm²): 120 , Min/max conductor diameter (mm): 10 - 14 , Thread under base: M7 , Max thickness (mm): 12 , Sold in packs of: 25 , Weight (kg/100): 10.7
SEF150-7/2RBM = Section (mm²): 150 , Min/max conductor diameter (mm): 10 - 16 , Thread under base: M7 , Max thickness (mm): 12 , Sold in packs of: 25 , Weight (kg/100): 16
SEF185-7/2RBM = Section (mm²): 185 , Min/max conductor diameter (mm): 12 - 18 , Thread under base: M7 , Max thickness (mm): 12 , Sold in packs of: 25 , Weight (kg/100): 17
SEF120-8/2RBM = Section (mm²): 120 , Min/max conductor diameter (mm): 10 - 14 , Thread under base: M8 , Max thickness (mm): 14 , Sold in packs of: 25 , Weight (kg/100): 11.2
SEF150-8/2RBM = Section (mm²): 150 , Min/max conductor diameter (mm): 10 - 16 , Thread under base: M8 , Max thickness (mm): 14 , Sold in packs of: 25 , Weight (kg/100): 16.2
SEF185-8/2RBM = Section (mm²): 185 , Min/max conductor diameter (mm): 12 - 18 , Thread under base: M8 , Max thickness (mm): 14 , Sold in packs of: 25 , Weight (kg/100): 17.5
SEF240-8/2RBM = Section (mm²): 240 , Min/max conductor diameter (mm): 16 - 20 , Thread under base: M8 , Max thickness (mm): 14 , Sold in packs of: 25 , Weight (kg/100): 25.9
SEFB300-8/BM = Section (mm²): 300 , Min/max conductor diameter (mm): 22 - 23 , Thread under base: M8 , Max thickness (mm): 14 , Sold in packs of: 10 , Weight (kg/100): 32.7
