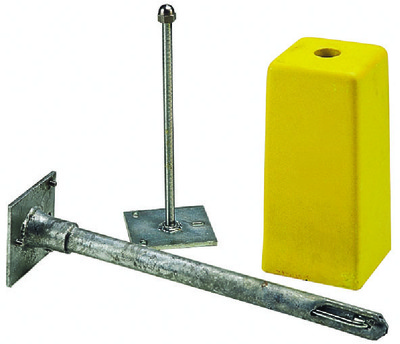

S504 Concrete base

SPECIFICATIONS :
Bollard made of polyquartz concrete, coloured in the mass.
Head height 300 mm.
Support plate with deployable anchor that can be adjusted according to the structure of the ground.
Head fixed to support with threaded rod.
Base: 130 x 130 mm, anchoring length 500 mm.
Anchor: Ø 26,9 x 2,3 mm in treated steel.
Rod: Ø 16 mm in A60 steel.

S504J = Yellow concrete base for gas , Base dimensions (mm): 295 x 125 x 125 , Weight (kg): 11
S504R = Red cocnrete base for electricity , Base dimensions (mm): 295 x 125 x 125 , Weight (kg): 11
