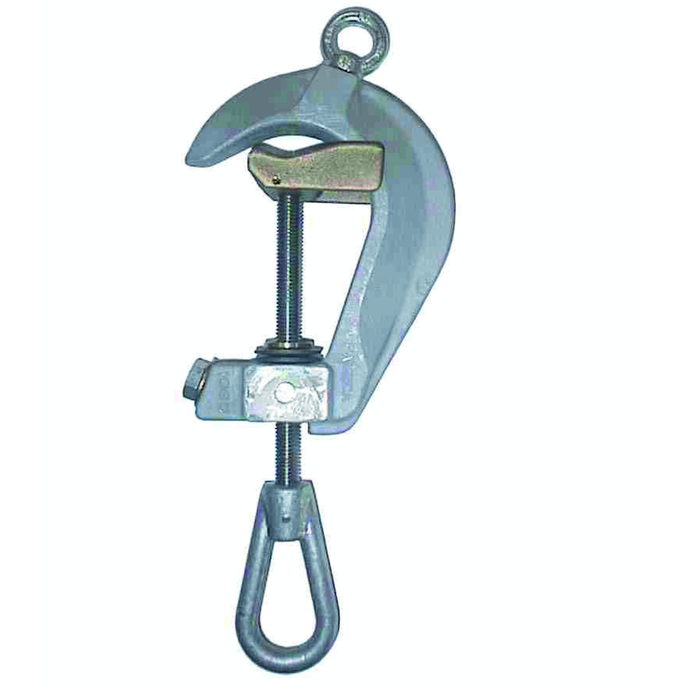

R1560 Earthing clamps, substation and line version
STANDARD(S) : CEI 61230
USE : For cylindrical conductors and bars.
Fits TFK connection.
SPECIFICATIONS : Model R1560 : Anti-arcing or "martyr" clamp : provides the connection between the cable and the clamp
TABLE LEGEND : Complete the reference with the required end fitting. Example : S1560B for a clamp S1560 with bayonet end fitting.
S540 = HT1080 clamp , Tightening capacity: Ø 5 to 40 mm , End fittings: HE, AN, CR, CL, BCL and X46 , Max. Isc	: 31.5 kA/1s , Length (mm): 156 , Weight (kg): 1.4
S1560 = S1560 clamp , Tightening capacity: Ø 15 to 60 mm , End fittings: HE, AN, CR, CL, BCL and X46 , Max. Isc	: 31.5kA/1s - 40kA/1s with P1560S double plate , Length (mm): 156 , Weight (kg): 1.4
HT1080 = HT1080 clamp , Tightening capacity: Ø 10 to 80 mm , End fittings: HE, AN, CR, CL, BCL and X46 , Max. Isc	: 31.5 kA/1s , Length (mm): 275 , Weight (kg): 1.3
HT1080A = HT1080 clamp with lifting ring , Tightening capacity: Ø 10 to 80 mm , End fittings: HE, AN, CR, CL, BCL and X46 , Max. Isc	: 31.5 kA/1s , Length (mm): 275 , Weight (kg): 1.3
R1560 = Anti-arcing or ""martyr"" clamp: provides the connection between the cable and the clamp , Tightening capacity: Ø 15 to 60 mm , End fittings: HE, AN, CR , Max. Isc	: 31.5 kA/1s , Length (mm): 275 , Weight (kg): 1.3
