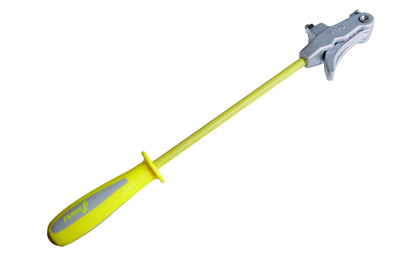

PT318 BT318 clamp on 0.4 m stick with handle

STANDARD(S) : IEC 61230
USE : Clamp designed to equip short-circuiting and earthing devices for bare LV overhead lines.

SPECIFICATIONS :
This clamp is made of aluminium alloy, mounted on an insulating stick (fibreglass / epoxy resin) equipped with an ergonomic insulating handle.
There is a contact plate at the back of the clamp to fasten on the short-circuit cable lugs.
This fastening is made with stainless steel screws (supplied with the clamp sold alone).
Note:

PT318: reference of the clamp alone on a stick with a handle.
To make up a complete device, see BT318xN. It is possible to adapt different lengths and cross-sections of cables (up to 35 mm²...).
The length of the insulating rod can also be adapted on request.
Max. Isc : 3 kA/1s

ADVANTAGES :
Ergonomic handle with hand guard.
Fast attachment/detachment.
