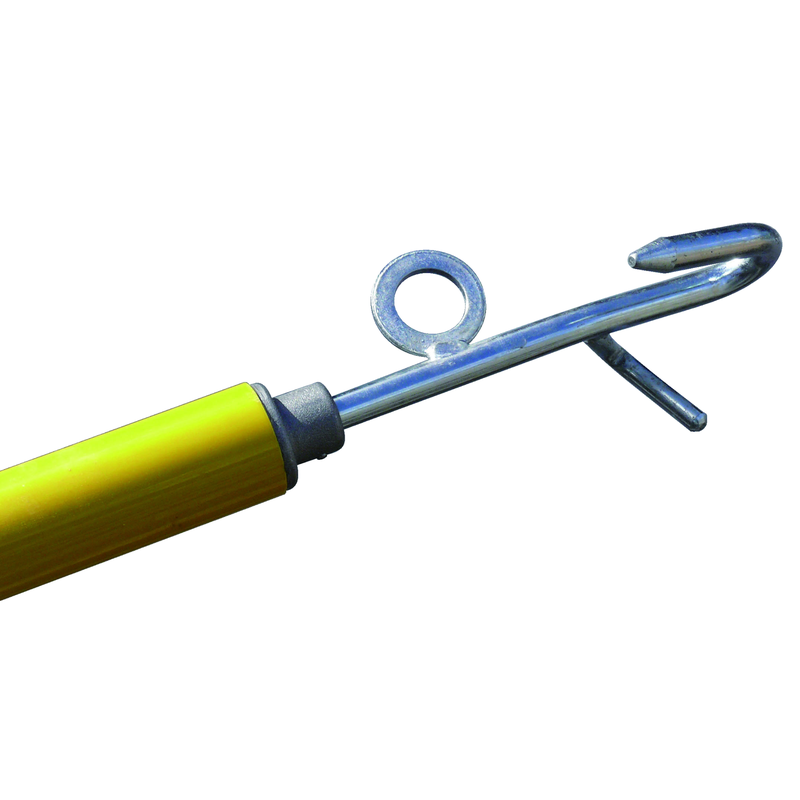

PRE Special heavy duty connectable insulating stick

STANDARD(S) : EN 50508 / IEC 60855-1

USE : Earthing on high and very high voltage lines and substations,
All work involving high mechanical loads.

SPECIFICATIONS :
• Fibreglass composite tube, Ø 39 mm, polyurethane foam-filled, compliant with IEC 60855 (series tested against penetration of humidity).
• Longitudinal dielectric strength 100 kV/30 cm guaranteed in humid atmosphere.
• Screw connectors ref. S46, light alloy with brake and protective sleeve.
• Elastomer hand guard marks the gripping zone.
• Ribbed non-slip shaft. Lgth. and references to order: see table.

Composition:
The PRE stick made up of several sections always has:
- a basic PFE section
- one or more PSE upper sections
- an S46 end adapter suited to the clamp to be handled (see PRE stick adapter connection).
Fixed end fitting :
Ring (AN) and hexagon (HE) fittings can be permanently mounted on the end section: please specify when ordering.

PRE1100 = Overall length (m): 1.05 , Shaft length (m): 0.25 , Insulating length (mm): 0.75 , Weight (kg): 1.1 , Number of elements: 1 , Max voltage EN 50508: 30 kV , Cover: H10
PRE1150 = Overall length (m): 1.55 , Shaft length (m): 0.5 , Insulating length (mm): 1 , Weight (kg): 1.5 , Number of elements: 1 , Max voltage EN 50508: 45 kV , Cover: H10
PRE1200 = Overall length (m): 2.05 , Shaft length (m): 0.7 , Insulating length (mm): 1.3 , Weight (kg): 1.9 , Number of elements: 1 , Max voltage EN 50508: 66 kV , Cover: H11
PRE1250 = Overall length (m): 2.55 , Shaft length (m): 0.9 , Insulating length (mm): 1.6 , Weight (kg): 2.3 , Number of elements: 1 , Max voltage EN 50508: 132 kV , Cover: HTR12750
PRE1300 = Overall length (m): 3.05 , Shaft length (m): 1 , Insulating length (mm): 2 , Weight (kg): 2.6 , Number of elements: 1 , Max voltage EN 50508: 132 kV , Cover: H12
PRE1400 = Overall length (m): 4.05 , Shaft length (m): 1.2 , Insulating length (mm): 2.6 , Weight (kg): 3.4 , Number of elements: 1 , Max voltage EN 50508: 220 kV , Cover: H13
PRE2200 = Overall length (m): 2.1 , Shaft length (m): 0.7 , Insulating length (mm): 1.58 , Weight (kg): 2.3 , Number of elements: 2 (2 x 1 m) , Max voltage EN 50508: 66 kV , Cover: H30A
PRE2300 = Overall length (m): 3.1 , Shaft length (m): 1 , Insulating length (mm): 2.08 , Weight (kg): 3 , Number of elements: 2 (2 x 1.5 m) , Max voltage EN 50508: 110 kV , Cover: H31A
PRE2400 = Overall length (m): 4.1 , Shaft length (m): 1.5 , Insulating length (mm): 2.88 , Weight (kg): 3.8 , Number of elements: 2 (2 x 2 m) , Max voltage EN 50508: 220 kV , Cover: H32A
PRE2500 = Overall length (m): 5.1 , Shaft length (m): 1.5 , Insulating length (mm): 3.88 , Weight (kg): 4.7 , Number of elements: 2 (2 x 2.5 m) , Max voltage EN 50508: 220 kV , Cover:
PRE3300 = Overall length (m): 3.15 , Shaft length (m): 0.7 , Insulating length (mm): 2.46 , Weight (kg): 3.4 , Number of elements: 3 (3 x 1 m) , Max voltage EN 50508: 132 kV , Cover: H30A
PRE3450 = Overall length (m): 4.65 , Shaft length (m): 1 , Insulating length (mm): 3.76 , Weight (kg): 4.5 , Number of elements: 3 (3 x 1.5 m) , Max voltage EN 50508: 220 kV , Cover: H31A
PRE3600 = Overall length (m): 6.15 , Shaft length (m): 1.5 , Insulating length (mm): 5.26 , Weight (kg): 5.7 , Number of elements: 3 (3 x 2 m) , Max voltage EN 50508: 400 kV , Cover: H32A
PRE3750 = Overall length (m): 7.15 , Shaft length (m): 1.5 , Insulating length (mm): 6.26 , Weight (kg): 6.6 , Number of elements: 3 (3 x 2.5 m) , Max voltage EN 50508: 480 kV , Cover:
