PICOUPEXP240ECE LV-MV Hydraulic Spiking-Cutting cables set
USE : Spiking cables to check and ensure the absence of tension on LV / MV underground cables before cutting them.
LV to HN 33 S 32 and S 33 Districables up to and including 3x240 mm² alu + 1x95 mm² alu
MV to NFC 33320 and C33223: 3x240 mm² and 1x630 mm²( single phase )
MV to NFC 33226: 3x240 mm² for copper cables
Old cables according to NFC 33100 and cables with armoured steel wire.
All new copper cables according to Standard NFC33-226
Cutting, after the spiking operation the so disconnected cable may then be safely cut.
SPECIFICATIONS :
• Hydraulic cable spiking-cutting head composed of :
- Hydraulic jack
- A case that helps the tool to be installed on the cable
- A cutting blade + a pike in treated steel to make the spiking and cutting operations on the cable
- A cradle to centre the tool on the cable
- An integrated hydraulic pump (700 bars)
- U motor = integrated 12 V,
Cutting capacity: diameter of 90 mm
Weight: 12 Kg
• Remote control panel with radio code (fréquency 433,92 Mhz)
- The remote control panel connected to the pricking and cutting tool - electrical wire of 3 m long
- 1 Flash indicates the stand-by of the case remote control
- 1 Siren indicates the good accomplishment of the operation and the end of it
- The tool is working thanks to the battery connected on its case
• Wireless remote control with 2 buttons (433,92 Mhz):
- Powered by two 1.5 V battery
- Coded radio
- Single encoding
- Usable up to 150 meters

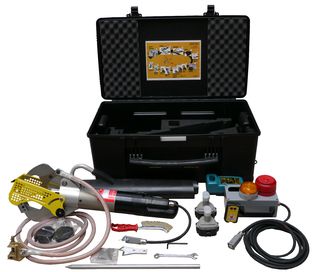

Delivered in case containing all necessary parts for the checking absence of voltage operation:
- The spiking-cutting head with flexible braid and earthing rod.
- Two 12 V. batteries and associated one-hour fast charger .
- Wrench to install an other steel pike and to disconnect the earthing flexible braid.
- 1 spare spike
- 1 gauge to check the spike
- Two straps each 2m. long for securing the tool in tunnels and trenches.
- Protective undercarpet 0.7 m x 1 m.
ADVANTAGES :
Spiking and cutting in one operation.
Single phase fault 1000A/1s.
