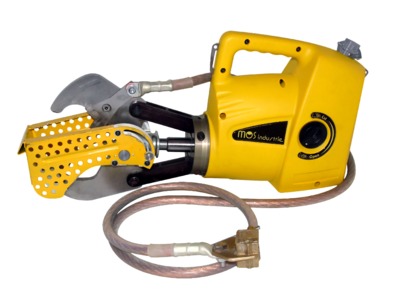

PICOUP250 LV-MV HYDRAULIC SPIKING-CUTTING CABLE SET

USE :
- SPIKING cable to check and ensure the absence of voltage on LV and MV underground cables before cutting them
LV cable up to 3 x 240mm² with reinforced steel wire
MV cable up to 3 x 240mm² with reinforced steel wire
Enables the user to limit any resulting short circuit to a single-phase / ground fault when spiking multi core cables. This causes any protective devices to trip before a 2 or 3 phase fault can be created.
- CUTTING after spiking operation in full safety

SPECIFICATIONS :
• Cutting head
- Single stage hydraulic jack
- Nominal pressure : 700 bars
- Blade guard to install and maintain the tool on the cable
- Flexible, copper earthing braid of 2 meters long. Section 70mm²
- Cutting blades made of reinforced heat treated steel specifically engineered to cut cable
- Manual lever for opening and closing the blades
- Cutting capacity : up to 140 mm outer diameter
- Metal armature : all except round wires
- Maximum section : 3 x 240 mm² copper
- Cutting force : 13 000 Kg
- Dimensions L x W x H : 628 x 165 x 328 mm
- Weight : 14 kg

• Control box
Light for checking battery condition
Power cable : 5m
Powered by 24V battery

• Remote control (868 MHz)
- Range up to 150 meters
- indication of cutting progress

• Power
- Voltage : 24V 3Ah
- Battery level with LED indication
- 20 Cuts capacity

• Full set
- Delivered in foam lined plastic box with trolley
- Flexible copper cable and earthing rod.
- 2 batteries
- Fast charger 220V
- Blade removal tool
- 1 cleaning brush
- 1 replacement spiking and cutting blade
- Flash protective mat 0.7 x 1 m
- External dimensions L x W x H : 687 x 528 x 376 mm
- Weight : 35 kg

ADVANTAGES :
- Operating from a minimum distance of 8 meters, protecting the operator in the event of a live cable being spiked.
- Damage to infrastructure is minimised when spiking as a single phase to earth fault is created using a dedicated, local 70 mm² copper earthing cable.
- Compact design, robust and easy to use
- More security for the user: Indictor LEDs during the spiking and cutting operation
- Cutting failure sensor
- Blade closure sensor
- Double hydraulic over-pressure safety valve
- Checking of cutting time
- Electronic locking of the tool if the battery runs low.
