PICOUP-2E Hydraulic Spiking-Cutting cable set for checking the absence of voltage

USE : Spiking a cable to check and ensure the absence of voltage on LV and MV underground cables before cutting them.
LV to HN 33 S 32 and S 33 up to 3x240 mm² alu + 1x95 mm² alu .
MV to NFC 33320 and C33223 : 3x240 mm² and 1x630 mm² (single phase).
Old cables according to NFC 33.100.
The tool limits its work to create a single phase fault on a multiphase (and or a single phase) cable
thereby provoking the immediate reaction of the protections ( limiters, breaker, etc ) before said fault is converted into a two-phase or a three-phase fault .
After this spiking operation, the so disconnected cable may then be safely cut.

SPECIFICATIONS :
• Hydraulic cable spiking-cutting head composed of :
- a hydraulic jack,
- a crank for manual approach to position the tool on the cable,
- a treated steel pair of cutting blades, one of them bears the steel pike,
- a cradle for centring the cable,
- a blade guide,
- 2 gauges to check the pike
- Cutting capacity : Ø 95 mm
- Dimensions : 540 x 210 x 330 mm
- Weight : 13,5 kg

• Specialized electro-hydraulic autonomous pump unit composed of:
- a 700 bars nominal pressure electro-hydraulic pump driven by a 12 V. motor .
- a control casing homing the battery .
- high pressure flexible hoses ( non-conductive orange 1 m.long + armoured black 2 m. long ).
- a valve in case of emergency use of a foot pump .
- Hydraulic fluid TOTAL EQUIVIS ZS 15
- Reservoir capacity : 0.7 l .
Dimensions : 260 x 130 x 280 mm.
Weight : 5,1 kg.

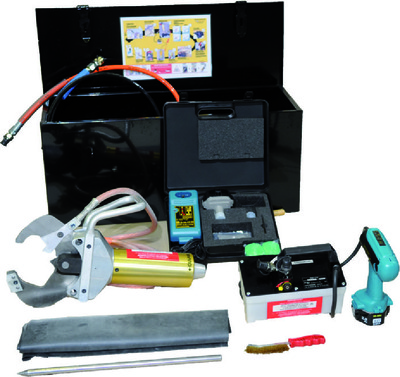

Delivered in case containing all necessary parts for the checking absence of voltage operation:
- The spiking-cutting head with flexible braid and earthing rod.
- The electro-hydraulic pump.
- Two 12 V. batteries and associated one-hour fast charger .
- Wrench to install an other steel pike and to disconnect the earthing flexible braid.
- A gauge to check the shape of the pike
- Two straps each 2m. long for securing the tool in tunnels and trenches.
- Protective undercarpet 0.7 m x 1 m.

Dimensions : 850 x 300 x 350 MM
Total weight : 40 kg.

ADVANTAGES :
Spiking and cutting in one operation.
Single phase fault 1000A/1s.
