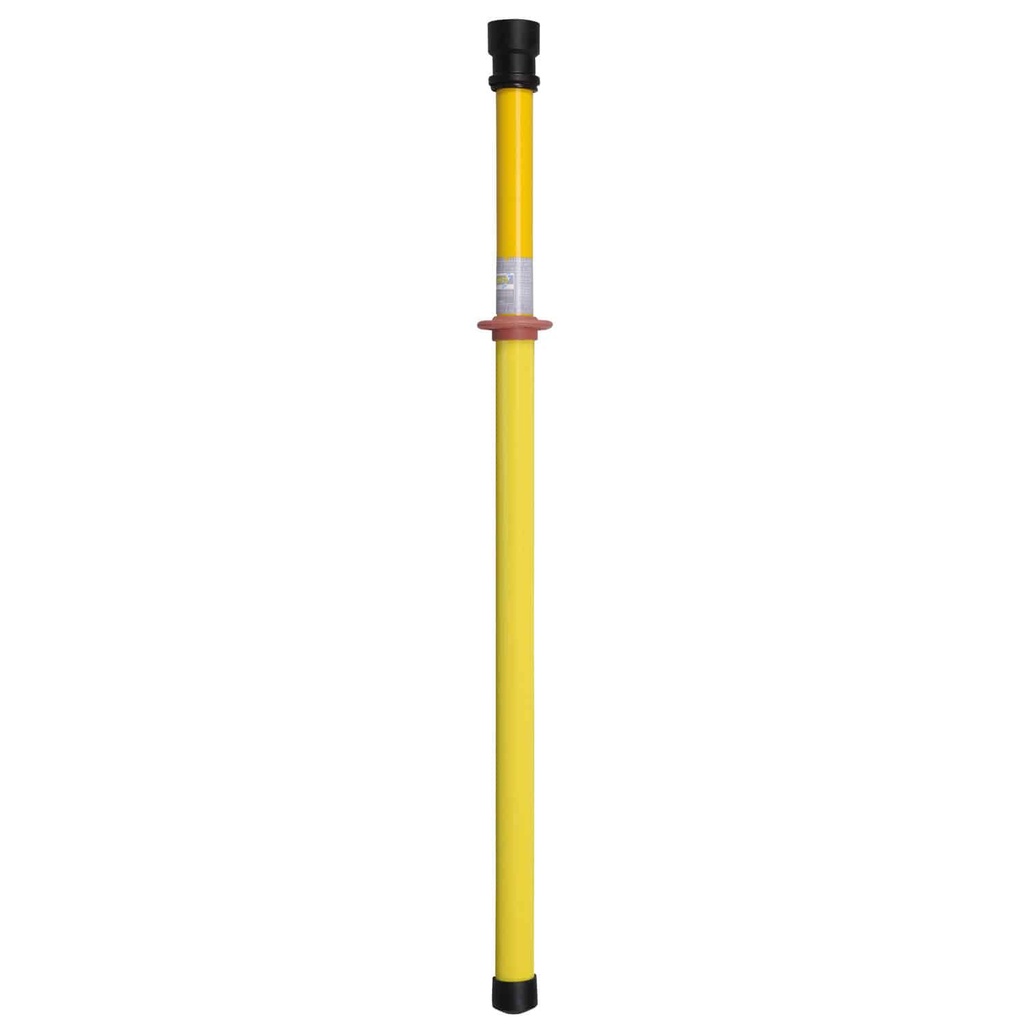

PFE Lower section PFE (shaft) of insulating stick PRE
STANDARD(S) : EN 50508 / IEC 60855-1
USE : Earthing on high and very high voltage lines and substations,
All work involving high mechanical loads.
SPECIFICATIONS :
• Fibreglass composite tube, Ø 39 mm, polyurethane foam-filled, compliant with IEC 60855 (series tested against penetration of humidity).
• Longitudinal dielectric strength 100 kV/30 cm guaranteed in humid atmosphere.
• Screw connectors ref. S46, light alloy with brake and protective sleeve.
• Elastomer hand guard marks the gripping zone.
• Ribbed non-slip shaft. Lgth. and references to order: see table.
Composition:
The PRE stick made up of several sections always has:
- a basic PFE section
- one or more PSE upper sections
- an S46 end adapter suited to the clamp to be handled (see PRE stick adapter connection).
Fixed end fitting :
Ring (AN) and hexagon (HE) fittings can be permanently mounted on the end section: please specify when ordering.
PFE100 = Overall length (m): 1.05 , Shaft length (m): 0.7 , Insulating length (mm): 0.3 , Weight (kg): 1.1
PFE150 = Overall length (m): 1.55 , Shaft length (m): 1 , Insulating length (mm): 0.5 , Weight (kg): 1.5
PFE200 = Overall length (m): 2.05 , Shaft length (m): 1.5 , Insulating length (mm): 0.6 , Weight (kg): 1.9
PFE250 = Overall length (m): 2.55 , Shaft length (m): 1.5 , Insulating length (mm): 1 , Weight (kg): 2.4
PFE300 = Overall length (m): 3.05 , Shaft length (m): 1.5 , Insulating length (mm): 1.7 , Weight (kg): 2.9
