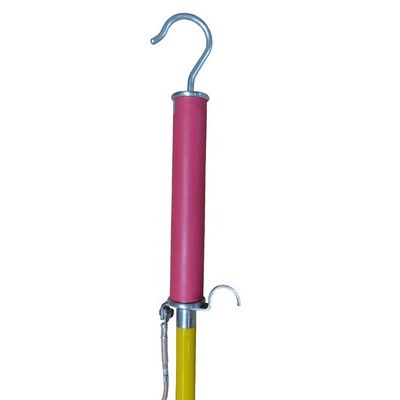

PDD Discharge stick
STANDARD(S) : IEC 60855-1
SPECIFICATIONS :
Insulating stick (telescopic or with sections), equipped with a discharge resistor, with or without cable and an earthing clamp (PTS38)
Available without discharge resistor.
Dimensions of the discharge resistor : 330 x 51 x 51 mm
Weight of the discharge resistor : 500 g
PDD001 = Type: Telescopic stick , Resistance value (Ω): 115 100 PTS38 , Extended length (m): 3.6 , Folded length (m): 2.15 , Cable cross-section (mm²): 16 , Cable length (m): 10
PDD002 = Type: Telescopic stick , Resistance value (Ω): 6000 40 PTS38 , Extended length (m): 3.6 , Folded length (m): 2.15 , Cable cross-section (mm²): 16 , Cable length (m): 10
PDD003 = Type: 1 section stick , Resistance value (Ω): 10000 33 PTS38 , Extended length (m): 1.3 , Folded length (m): 1.3 , Cable cross-section (mm²): 16 , Cable length (m): 10
PDD004 = Type: Telescopic , Resistance value (Ω): 1500 150 sin , Extended length (m): 4.2 , Folded length (m): 2.45 , Cable cross-section (mm²): 35 , Cable length (m): 10
PDD005 = Type: Telescopic , Resistance value (Ω): 15000 150 sin , Extended length (m): 4.2 , Folded length (m): 2.45 , Cable cross-section (mm²): 35 , Cable length (m): 10
PDD006 = Type: 1 section stick , Resistance value (Ω): 600 50 sin , Extended length (m): 1.7 , Folded length (m): 1.7 , Cable cross-section (mm²): 16 , Cable length (m): 3.5
PDD007 = Type: Telescopic , Resistance value (Ω): 2500 120 sin , Extended length (m): 2.25 , Folded length (m): 2.25 , Cable cross-section (mm²): 25 , Cable length (m): 5
PDDS001 = Type: Telescopic , Resistance value (Ω): N/A 225 PTS38 , Extended length (m): 3.3 , Folded length (m): 1.8 , Cable cross-section (mm²): 16 , Cable length (m): 10
PDDS002 = Type: 1 section stick , Resistance value (Ω): N/A 45 sin , Extended length (m): 1.62 , Folded length (m): 1.62 , Cable cross-section (mm²): 16 , Cable length (m): 3
PDDS003 = Type: 1 section stick , Resistance value (Ω): N/A 45 sin , Extended length (m): 1.62 , Folded length (m): 1.62 , Cable cross-section (mm²): 16 , Cable length (m): 5
PDDS006 = Type: 1 section stick , Resistance value (Ω): N/A 66 sin , Extended length (m): 1.42 , Folded length (m): 1.42 , Cable cross-section (mm²): 16 , Cable length (m): 3.5
PDDS004 = Type: , Resistance value (Ω): N/A 66 NB8 , Extended length (m): 2.12 , Folded length (m): 2.12 , Cable cross-section (mm²): 16 , Cable length (m): 5
PDDS005 = Type: , Resistance value (Ω): N/A 45 sin , Extended length (m): 1.62 , Folded length (m): 1.62 , Cable cross-section (mm²): 16 , Cable length (m): 10
PDDS007 = Type: , Resistance value (Ω): N/A 45 PTS38 , Extended length (m): 2.12 , Folded length (m): 2.12 , Cable cross-section (mm²): 16 , Cable length (m): 5
PDDS008 = Type: , Resistance value (Ω): N/A 36 NB8 , Extended length (m): 1.12 , Folded length (m): 1.12 , Cable cross-section (mm²): 25 , Cable length (m): 3
PDDS009 = Type: , Resistance value (Ω): N/A 36 NBCRTTS , Extended length (m): 1.12 , Folded length (m): 1.12 , Cable cross-section (mm²): 35 , Cable length (m): 15
PDDS010 = Type: , Resistance value (Ω): N/A 150 NB8 , Extended length (m): 3.12 , Folded length (m): 3.12 , Cable cross-section (mm²): 16 , Cable length (m): 5
PDDS011 = Type: , Resistance value (Ω): N/A 45 NB8 , Extended length (m): 1.42 , Folded length (m): 1.42 , Cable cross-section (mm²): 16 , Cable length (m): 15
PDDS012 = Type: , Resistance value (Ω): N/A 100 NBD25M , Extended length (m): 2 , Folded length (m): 1.2 , Cable cross-section (mm²): 16 , Cable length (m): 6
PDDS013 = Type: , Resistance value (Ω): N/A 45 NB8 , Extended length (m): 1.62 , Folded length (m): 1.62 , Cable cross-section (mm²): 16 , Cable length (m): 10
PDDS014 = Type: , Resistance value (Ω): N/A 45 MAGPFAM , Extended length (m): 1.1 , Folded length (m): 1.1 , Cable cross-section (mm²): 16 , Cable length (m): 2.5
