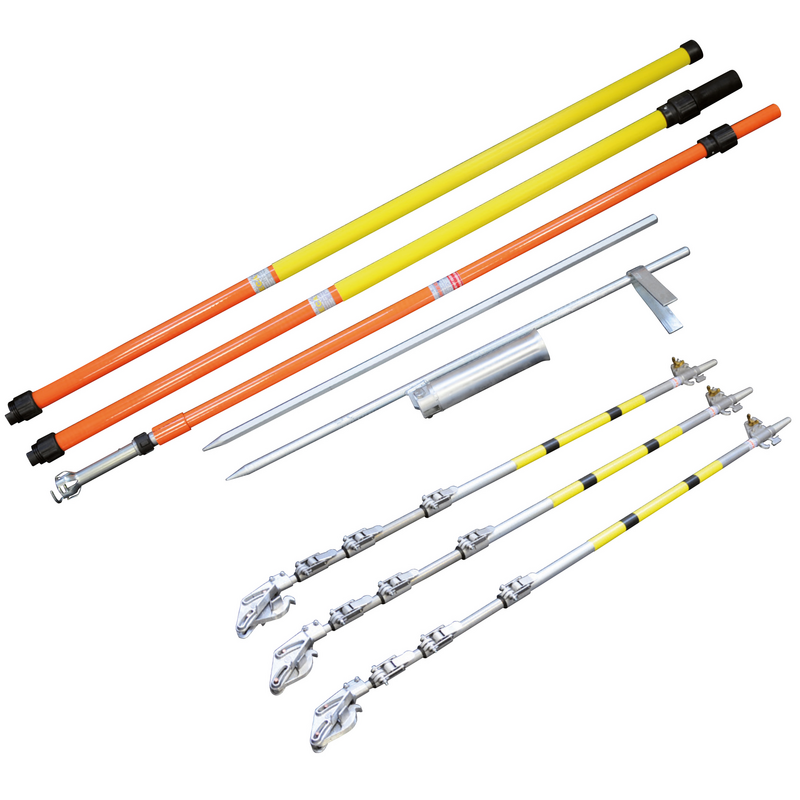

PA3GTI NEVERS Earthing and short-circuiting Complete set of equipment with 3-section metal sticks

STANDARD(S) : IEC 61230

USE : The Nevers device enables a single lineman to :
• check for the absence of voltage,
• earth and short-circuit overhead lines at heights of up to 11.50 m.
On bare MV overhead lines from the ground.

SPECIFICATIONS :
• Max. allowable Isc : 8 kA/1s
• clamping range on cylindrical conductors from 3 to 22 mm in diameter (7 to 380 mm²)
• telescopic metal sticks fitted with collars for quick, calibrated clamping, with integrated cleaning rings,
• 3-section foam-filled fibreglass insulating sticks, type IEC 60855, with reinforced slot-in joints,
• optional insulating extension to reach 11.5m,
• fit the no-voltage tester to the bottom of the metal stick before earthing,
• equipment for use with TAG200 or TAG2000 no-voltage detectors (detector not supplied),
• removable clamp and stick bottom

ADVANTAGES : For work from the ground to heights up to 11.5 m.
Complete set of equipment with 3-section metal sticks
