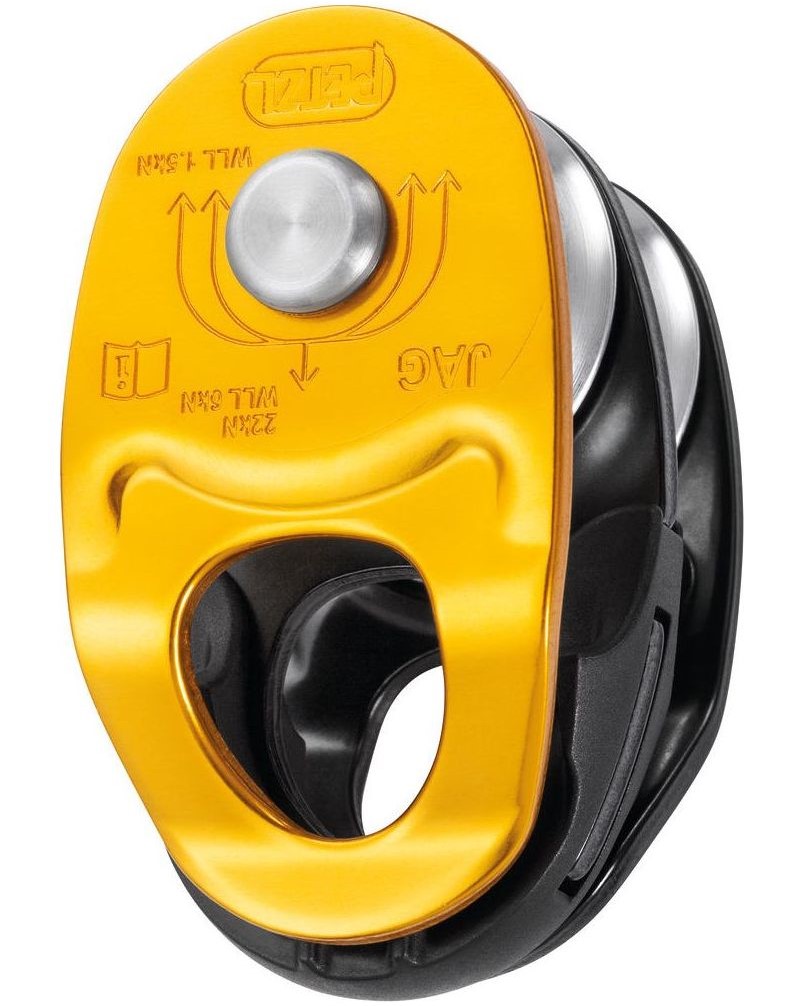

P45 JAG High-efficiency double pulley

The JAG double pulley is designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system. Sheaves mounted on sealed ball bearings for excellent efficiency.

Description
Designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system
Sheaves mounted on sealed ball bearings for excellent efficiency

Specifications
Weight: 120 g
Certification(s): CE EN 12278, NFPA 1983 Technical Use
Material(s): aluminum, nylon
Min. rope diameter: 8 mm
Max. rope diameter: 11 mm
Sheave type: sealed ball bearings
Sheave diameter: 25 mm
Maximum working load: 2 × 1,5 kN × 2 = 6 kN
Breaking strength: 2 × 4 kN × 2 = 16 kN
Efficiency: 91 %
