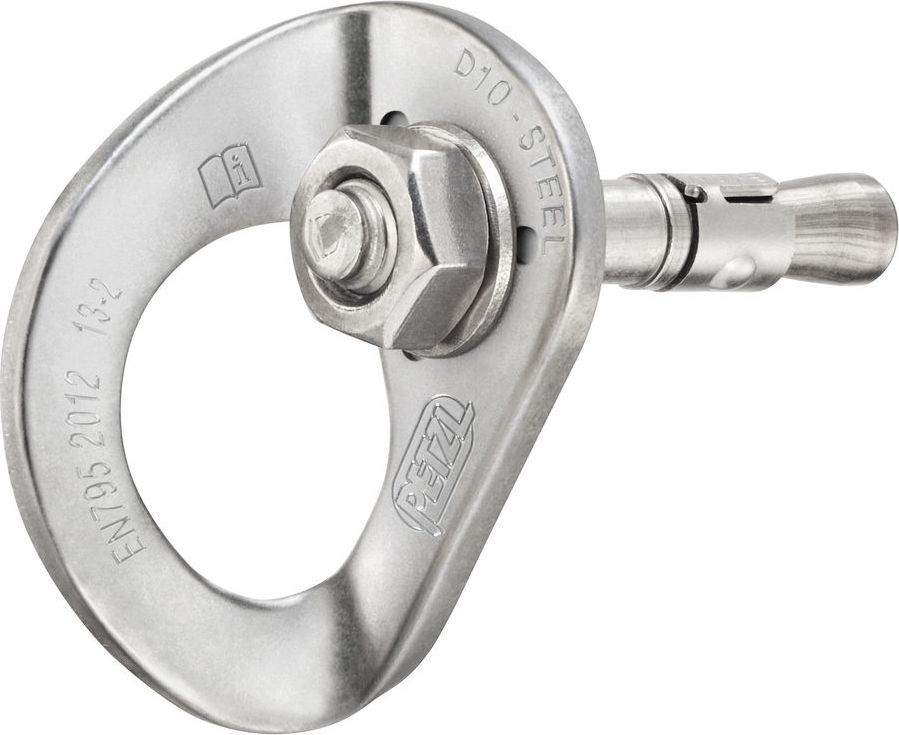

P36B COEUR BOLT anchor (pack of 20)

The COEUR BOLT is a anchor made up of a COEUR hanger, a bolt, and a nut. It is available in 10 and 12 mm diameters.

Description
Assembly composed of a COEUR hanger, a bolt, and a nut

Easy to clip:

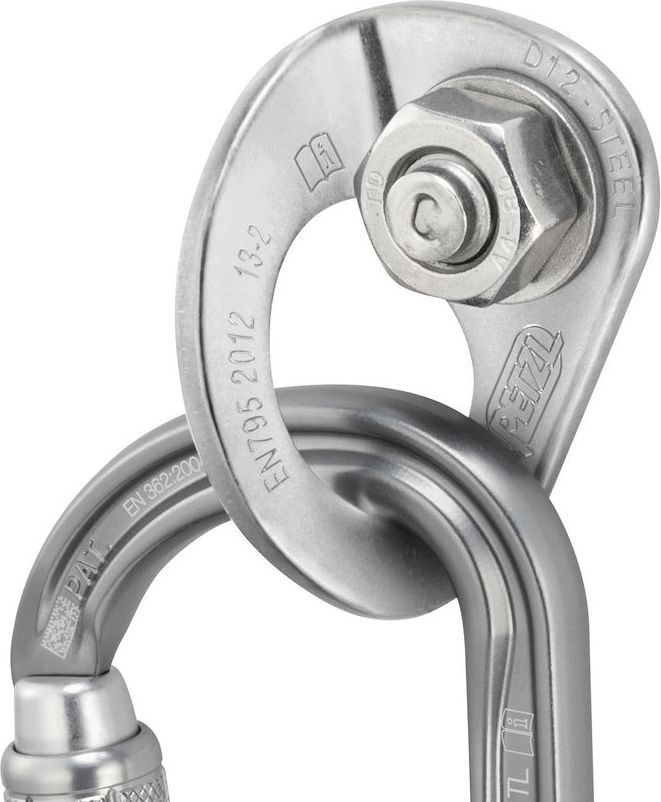

- the wide, ergonomic connection point facilitates carabiner clipping
- the width of the attachment point allows installation of two carabiners at the same time
Reduces wear on connectors: the thickness of the hanger and the rounded edges of the connection point minimize wear on connectors
Hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
Available in two bolt sizes (10 or 12 mm)

Specifications
Certification(s): EN 959

COEUR hangers, available separately:

COEUR BOLT STEEL Standard steel anchor for interior use or non-permanent installations (pack of 20)
References	P36BA 10
Diameter	10 mm
Drilling diameter	10 mm
Total bolt length	85 mm
Shear strength in 50 MPa concrete	23 kN
Pull-out strength in concrete 50 MPa	15 kN

References	P36BA 12
Diameter	12 mm
Drilling diameter	12 mm
Total bolt length	105 mm
Shear strength in 50 MPa concrete	25 kN
Pull-out strength in concrete 50 MPa	18 kN

COEUR BOLT STAINLESS 316L High quality stainless steel anchor for typical exterior use (pack of 20)
References	P36BS 10
Diameter	10 mm
Drilling diameter	10 mm
Total bolt length	70 mm
Shear strength in 50 MPa concrete	25 kN
Pull-out strength in concrete 50 MPa	15 kN

References	P36BS 12
Diameter	12 mm
Drilling diameter	12 mm
Total bolt length	85 mm
Shear strength in 50 MPa concrete	25 kN
Pull-out strength in concrete 50 MPa	18 kN

COEUR BOLT HCR High Corrosion Resistance stainless steel anchor for corrosive environments (pack of 20)
References	P36BH 12
Diameter	12 mm
Total bolt length	85 mm
Drilling diameter	12 mm
Shear strength in 50 MPa concrete	25 kN
Pull-out strength in concrete 50 MPa	18 kN
