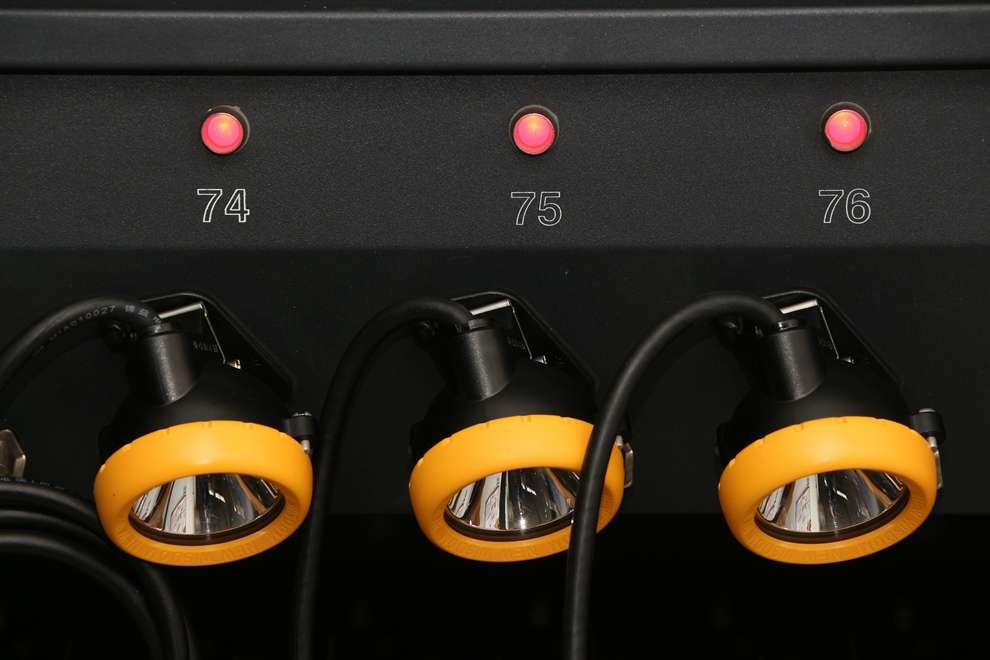

NWCR-12A Corded Lamp Charging Rack

12 charging ports
Voltage range: 100~240V
Faster charging
Range of Application：
KL4MS KL5MS KL8MS KL12MS KL5M KL8M KL12M KL5M-C

Faster charging
After applying the intelligent fast charging technology, the time to fully charge the lamp is much less than before. For WISDOM KL5M cap lamp, it takes only 3 hours to get full charge; while for WISDOM KL8M, less than 5 hours is enough.

Higher efficiency, less heat
Compared with the past generations of the chargers, the charger PCB of NWCR-12 is improved to be more efficient. Even charged in full power, it generates only a little heat.

Wide range voltage
Voltage range of the AC power supply is: 100~240V
The wide range makes the charger applicable to specific voltage standard in all countries.

Environmentally-friendly
The Charging rack is designed in accordance with the Restriction of Hazardous Substances Directive (RoHS). RoHS standard is strictly followed in the whole process, from choosing the material to designing the production technic.

Technical specifications
Features	Specifications
Model: NWCR-12A
AC input: 100~240 V ± 10%, 3.5 A, 50~60 Hz
DC output voltage: 4.56 V
DC output current: 2400 mA
Size	: 30 x 25 x 100 cm; 11.8 x 9.8 x 39.4 in
Weight	24 kg; 52.91 lb

Charging time:
KL5M = 4H
KL8M = 5.5H
KL12M = 6.5H
