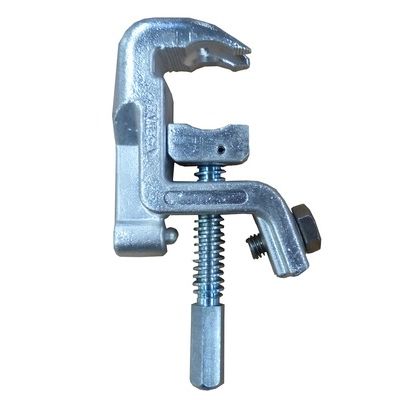

NB2025 Earthing clamps for compact fixed ball points

STANDARD(S) : IEC 61230

USE : Clamp specially designed for earthing fixed ball points.

SPECIFICATIONS :
Made of aluminium bronze.
M10 stainless steel screws included.
Max Isc : 23,5 kA/1s
20 kA/1s on ball Ø 20 mm

Clamping capacity :
Cylindrical conductor : 5 - 32 mm
Flat conductor : 32 mm
Fixed ball point - Sphere Ø : 20 and 25 mm
Fixed ball point - T Ø : 20 mm

ADVANTAGES :
Extremely easy to use on all shapes of conductor and fixed points.
With the AP end fitting, they are fitted with an anti-rotation brake to prevent them rotating during installation.

TABLE LEGEND : Available as standard with end fitting: - M (handle) - CR (ring for hooked stick) Other end fittings available on request.

NB2025B = Earthing clamps for compact fixed ball points with Bayonet end fitting , End fitting: B (Bayonet)
NB2025AP = Earthing clamps for compact fixed ball points with hexagonal end fitting AP (Hexagonal 12 mm)
NB2025M = Earthing clamps for compact fixed ball points with handle M (Handle)
NB2025CR = Earthing clamps for compact fixed ball points with CR end fitting CR (ring for hooked stick)
