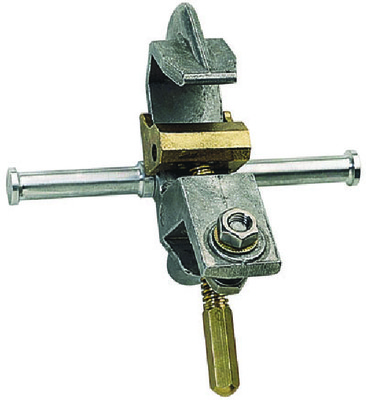

MT535URU Screw clamp for bare MV overhead lines

STANDARD(S) : IEC 61230

USE : For short-circuiting and earthing bare overhead lines from the post.

SPECIFICATIONS :
Clamping range on line conductor 3 to 32 mm.
Max Isc : 25 kA/1s.
Material : Aluminium.
The central clamp can be fitted with one or two attachment rods for one or two extra phase clamps.
DMT535URU : Made to measure earthing and short-circuiting device please contact us.

ADVANTAGES : Lightweight, very compact clamp.

TABLE LEGEND : Other end fittings available on request.

MT535URUAP = Clamp with AP end fitting (hexagonal 12 mm)
MT535URUB = Clamp with B end fitting (VDE-type bayonet)
MT535URUCR = Clamp with CR end fitting (ring for hooked stick)
MT535URUCR1 = Clamp with CR end fitting and 1 attachment rod
MT535URUCR2 = Clamp with CR end fitting and 2 attachment rods
MT535URUAP2 = Clamp with CR end fitting and 2 attachment rods
MT535URUB2 = Clamp with B end fitting and 2 attachment rods
