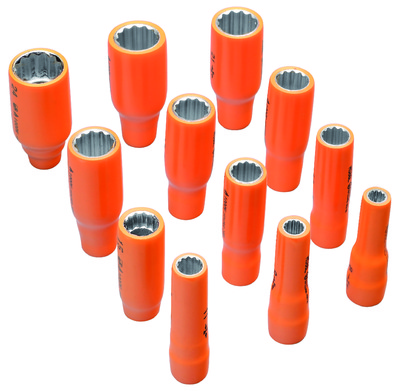

MS86L 1000V Insulated 12-sided female socket - long series - 3/8" square drive
STANDARD(S) : EN 60900 / IEC 60900 / ISO 691 / ISO 1174-1 / ISO 1711-1 / ISO 2725-1
USE : Manual sockets suitable for use with standard or mechanically locking ratchets.
Long sockets suitable for difficult access (long shafts and threads).
SPECIFICATIONS :
Chrome vanadium steel.
Socket with 4 ogive-type recesses inside the female square to accommodate the crimped ball of the ratchet and thus ensure a safe and effective holding of the assembly (up to 500 Newtons to the pull-out).
A flange is included for optimum electrical protection when used with a ratchet spanner or an extension.
ADVANTAGES :
• Outer diameter reduced to a minimum for optimum accessibility on installations.
• The 12-sided profile preserves screws and nuts.
TABLE LEGEND : Other dimensions available on request (metric, inch, Withworth, BA).
MS86L 08 = Diameter: 8 mm , Weight (g): 50
MS86L 09 = Diameter: 9 mm , Weight (g): 55
MS86L 10 = Diameter: 10 mm , Weight (g): 60
MS86L 11 = Diameter: 11 mm , Weight (g): 70
MS86L 12 = Diameter: 12 mm , Weight (g): 70
MS86L 13 = Diameter: 13 mm , Weight (g): 80
MS86L 14 = Diameter: 14 mm , Weight (g): 90
MS86L 15 = Diameter: 15 mm , Weight (g): 100
MS86L 16 = Diameter: 16 mm , Weight (g): 120
MS86L 17 = Diameter: 17 mm , Weight (g): 150
MS86L 18 = Diameter: 18 mm , Weight (g): 160
MS86L 19 = Diameter: 19 mm , Weight (g): 170
MS86L 21 = Diameter: 21 mm , Weight (g): 210
MS86L 22 = Diameter: 22 mm , Weight (g): 230
MS86L 24 = Diameter: 24 mm , Weight (g): 230
MS86L 1/4" = Diameter: 1/4" , Weight (g): 45
MS86L 5/16" = Diameter: 5/16" , Weight (g): 50
MS86L 3/8" = Diameter: 3/8" , Weight (g): 55
MS86L 13/32" = Diameter: 13/32" , Weight (g): 60
MS86L 7/16" = Diameter: 7/16" , Weight (g): 70
MS86L 1/2" = Diameter: 1/2" , Weight (g): 75
MS86L 9/16" = Diameter: 9/16" , Weight (g): 90
MS86L 5/8" = Diameter: 5/8" , Weight (g): 120
MS86L 11/16" = Diameter: 11/16" , Weight (g): 150
MS86L 3/4" = Diameter: 3/4" , Weight (g): 170
MS86L 13/16" = Diameter: 13/16" , Weight (g): 210
MS86L 7/8" = Diameter: 7/8" , Weight (g): 230
