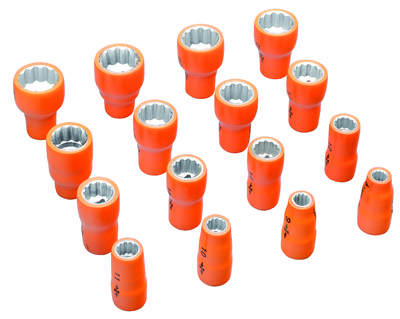

MS86 1000V Insulated 12-sided female socket - 3/8" square drive

STANDARD(S) : EN 60900 / IEC 60900 / ISO 691 / ISO 1174-1 / ISO 1711-1 / ISO 2725-1
USE : Manual sockets suitable for use with standard or mechanically locking ratchets.

SPECIFICATIONS :
Chrome vanadium steel.
Socket with 4 ogive-type recesses inside the female square to accommodate the crimped ball of the ratchet and thus ensure a safe and effective holding of the assembly (up to 500 Newtons to the pull-out).
A flange is included for optimum electrical protection when used with a ratchet spanner or an extension.

ADVANTAGES :
• Outer diameter reduced to a minimum for optimum accessibility on installations.
• The 12-sided profile preserves screws and nuts.

TABLE LEGEND :
Other dimensions available on request (metric, inch, Withworth, BA).

MS86 08 = Diameter: 8 mm , Weight (g): 35
MS86 09 = Diameter: 9 mm , Weight (g): 35
MS86 10 = Diameter: 10 mm , Weight (g): 40
MS86 11 = Diameter: 11 mm , Weight (g): 40
MS86 12 = Diameter: 12 mm , Weight (g): 40
MS86 13 = Diameter: 13 mm , Weight (g): 45
MS86 14 = Diameter: 14 mm , Weight (g): 45
MS86 15 = Diameter: 15 mm , Weight (g): 45
MS86 16 = Diameter: 16 mm , Weight (g): 50
MS86 17 = Diameter: 17 mm , Weight (g): 50
MS86 18 = Diameter: 18 mm , Weight (g): 70
MS86 19 = Diameter: 19 mm , Weight (g): 70
MS86 20 = Diameter: 20 mm , Weight (g): 80
MS86 21 = Diameter: 21 mm , Weight (g): 110
MS86 22 = Diameter: 22 mm , Weight (g): 120
MS86 23 = Diameter: 23 mm , Weight (g): 130
MS86 24 = Diameter: 24 mm , Weight (g): 140
MS86 5/16 = Diameter: 5/16" , Weight (g): 35
MS86 3/8 = Diameter: 3/8" , Weight (g): 40
MS86 7/16 = Diameter: 7/16" , Weight (g): 40
MS86 1/2 = Diameter: 1/2" , Weight (g): 45
MS86 9/16 = Diameter: 9/16" , Weight (g): 45
MS86 5/8 = Diameter: 5/8" , Weight (g): 50
MS86 11/16 = Diameter: 11/16" , Weight (g): 50
MS86 3/4 = Diameter: 3/4" , Weight (g): 70
MS86 13/16 = Diameter: 13/16" , Weight (g): 110
MS86 7/8 = Diameter: 7/8" , Weight (g): 120
