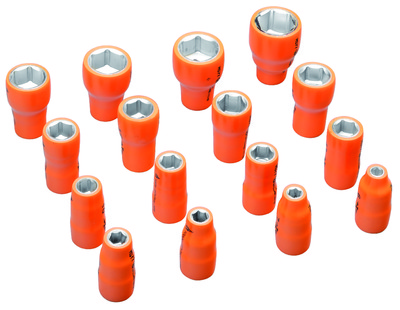

MS77 1000V Insulated female hexagonal socket - 3/8" square drive
STANDARD(S) : EN 60900 / IEC 60900 / ISO 691 / ISO 1174-1 / ISO 1711-1 / ISO 2725-1
USE : Manual sockets suitable for use with standard or mechanically locking ratchets.
SPECIFICATIONS :
Chrome vanadium steel.
Socket with 4 ogive-type recesses inside the female square to accommodate the crimped ball of the pawl and thus ensure a safe and effective holding of the assembly (up to 500 Newtons to the pull-out).
A flange is included for optimum electrical protection when used with a ratchet spanner or an extension.
ADVANTAGES : Outer diameter reduced to a minimum for optimum accessibility on installations.
TABLE LEGEND : Other dimensions on request (metric, inch, Withworth, BA).
MS77 06 = Diameter (mm): 6 mm , Weight (g): 30
MS77 07 = Diameter (mm): 7 mm , Weight (g): 30
MS77 08 = Diameter (mm): 8 mm , Weight (g): 30
MS77 09 = Diameter (mm): 9 mm , Weight (g): 30
MS77 10 = Diameter (mm): 10 mm , Weight (g): 35
MS77 11 = Diameter (mm): 11 mm , Weight (g): 35
MS77 12 = Diameter (mm): 12 mm , Weight (g): 35
MS77 13 = Diameter (mm): 13 mm , Weight (g): 35
MS77 14 = Diameter (mm): 14 mm , Weight (g): 45
MS77 15 = Diameter (mm): 15 mm , Weight (g): 45
MS77 16 = Diameter (mm): 16 mm , Weight (g): 50
MS77 17 = Diameter (mm): 17 mm , Weight (g): 60
MS77 18 = Diameter (mm): 18 mm , Weight (g): 60
MS77 19 = Diameter (mm): 19 mm , Weight (g): 70
MS77 20 = Diameter (mm): 20 mm , Weight (g): 85
MS77 21 = Diameter (mm): 21 mm , Weight (g): 85
MS77 22 = Diameter (mm): 22 mm , Weight (g): 90
MS77 23 = Diameter (mm): 23 mm , Weight (g): 100
MS77 24 = Diameter (mm): 24 mm , Weight (g): 110
MS77 7/16 = Diameter (mm): 7/16" , Weight (g): 35
MS77 1/2 = Diameter (mm): 1/2" , Weight (g): 45
MS77 9/16 = Diameter (mm): 9/16" , Weight (g): 45
MS77 5/8 = Diameter (mm): 5/8" , Weight (g): 60
MS77 11/16 = Diameter (mm): 11/16" , Weight (g): 60
MS77 3/4 = Diameter (mm): 3/4" , Weight (g): 70
MS77 13/16 = Diameter (mm): 13/16" , Weight (g): 85
MS77 3/8 = Diameter (mm): 3/8" , Weight (g): 35
MS77 26 = Diameter (mm): 26 mm , Weight (g): 110
