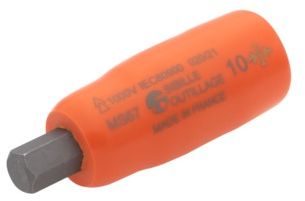

MS67 1000V Insulated male hexagonal socket - 1/2" (12.7 mm) square drive

STANDARD(S) : EN 60900 / CEI 60900 / ISO 1174-1 / ISO 2936
USE : Manual sockets suitable for use with standard or mechanically locking ratchets.

SPECIFICATIONS :
Chrome vanadium steel.
Socket with 4 ogive-type recesses inside the female square to accommodate the crimped ball of the pawl and thus ensure a safe and effective holding of the assembly (up to 500 Newtons to the pull-out).
A flange is included for optimum electrical protection when used with a ratchet or an extension.

ADVANTAGES : Outer diameter reduced to a minimum for optimum accessibility on installations.

TABLE LEGEND : Other dimensions available on request (metric, inch).

MS67 04 = Diameter: 4 mm , Weight (g): 100
MS67 05 = Diameter: 5 mm , Weight (g): 100
MS67 06 = Diameter: 6 mm , Weight (g): 100
MS67 08 = Diameter: 8 mm , Weight (g): 100
MS67 10 = Diameter: 10 mm , Weight (g): 100
MS67 11 = Diameter: 11 mm , Weight (g): 120
MS67 12 = Diameter: 12 mm , Weight (g): 160
MS67 14 = Diameter: 14 mm , Weight (g): 160
MS67 17 = Diameter: 17 mm , Weight (g): 180
MS67 19 = Diameter: 19 mm , Weight (g): 220
MS67 1/4'' = Diameter: 1/4'' , Weight (g): 100
MS67 5/16'' = Diameter: 5/16'' , Weight (g): 100
MS67 3/8'' = Diameter: 3/8'' , Weight (g): 100
MS67 1/2'' = Diameter: 1/2'' , Weight (g): 160
MS67 5/8'' = Diameter: 5/8'' , Weight (g): 170
MS67 7/16'' = Diameter: 7/16'' , Weight (g): 130
MS67 9/16'' = Diameter: 9/16'' , Weight (g): 165
