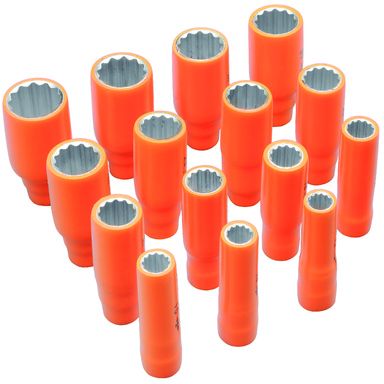

MS66L 1000V Insulated 12-sided female socket, long series, 1/2'' (12.7 mm) square drive

STANDARD(S) : EN 60900 / IEC 60900 / ISO 691 / ISO 1174-1 / ISO 1711-1 / ISO 2725-1
USE : Manual sockets suitable for use with standard or mechanically locking ratchets.
Long sockets suitable for difficult access (long shafts and threads).

SPECIFICATIONS :
Chrome vanadium steel.
Socket with 4 ogive-type recesses inside the female square to accommodate the crimped ball of the pawl and thus ensure a safe and effective holding of the assembly (up to 500 Newtons to the pull-out).
A flange is included for optimum electrical protection when used with a ratchet or an extension cord.

ADVANTAGES :
• Smallest possible outer diameter for optimum accessibility on installations.
• The 12-sided profile preserves screws and nuts.

TABLE LEGEND : Other dimensions available on request (metric, inch, Withworth, BA).

MS66L 12 = Diameter: 12 mm , Weight (g): 150
MS66L 13 = Diameter: 13 mm , Weight (g): 150
MS66L 14 = Diameter: 14 mm , Weight (g): 150
MS66L 15 = Diameter: 15 mm , Weight (g): 150
MS66L 16 = Diameter: 16 mm , Weight (g): 150
MS66L 17 = Diameter: 17 mm , Weight (g): 160
MS66L 18 = Diameter: 18 mm , Weight (g): 170
MS66L 19 = Diameter: 19 mm , Weight (g): 210
MS66L 21 = Diameter: 21 mm , Weight (g): 230
MS66L 22 = Diameter: 22 mm , Weight (g): 260
MS66L 23 = Diameter: 23 mm , Weight (g): 300
MS66L 24 = Diameter: 24 mm , Weight (g): 310
MS66L 26 = Diameter: 26 mm , Weight (g): 320
MS66L 27 = Diameter: 27 mm , Weight (g): 350
MS66L 28 = Diameter: 28 mm , Weight (g): 380
MS66L 30 = Diameter: 30 mm , Weight (g): 420
MS66L 32 = Diameter: 32 mm , Weight (g): 470
MS66L 5/16" = Diameter: 5/16'' , Weight (g): 100
MS66L 3/8" = Diameter: 3/8'' , Weight (g): 110
MS66L 7/16" = Diameter: 7/16'' , Weight (g): 115
MS66L 1/2'' = Diameter: 1/2'' , Weight (g): 120
MS66L 9/16'' = Diameter: 9/16'' , Weight (g): 135
MS66L 19/32" = Diameter: 19/32'' , Weight (g): 140
MS66L 5/8'' = Diameter: 5/8'' , Weight (g): 145
MS66L 11/16'' = Diameter: 11/16'' , Weight (g): 160
MS66L 3/4'' = Diameter: 3/4'' , Weight (g): 170
MS66L 13/16'' = Diameter: 13/16'' , Weight (g): 220
MS66L 7/8'' = Diameter: 7/8'' , Weight (g): 350
MS66L 15/16'' = Diameter: 15/16'' , Weight (g): 350
MS66L 1'' = Diameter: 1'' , Weight (g): 420
MS66L 1-1/16'' = Diameter: 1.1/16'' , Weight (g): 420
MS66L 1-1/8'' = Diameter: 1.1/8'' , Weight (g): 425
MS66L 1-1/4'' = Diameter: 1.1/4'' , Weight (g): 515
