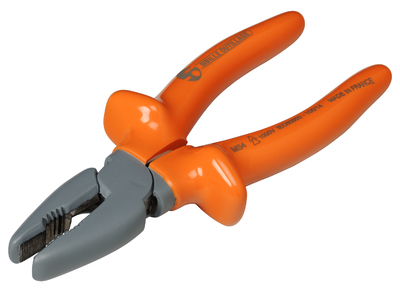

MS4E 1000V Fully insulated universal pliers

STANDARD(S) : EN 60900 / IEC 60900 / ISO 5743 / ISO 5744 / ISO 5746
USE : Multipurpose pliers (tightening, bending, cutting).
Complete insulation of the working head reduces the risk of short circuits.

SPECIFICATIONS :
Induction forge treatment of the cutting edges, giving jaws a long life.
Edge hardness: 60 HRC.
Browned steel finish for high anticorrosion protection thanks to a series of 5 baths.
The working head insulation is chamfered to avoid damaging it while grasping.

ADVANTAGES :
• Insulating reinforcements at the ends of arms for protection from impacts.
• Gripping surface with soft ribbing (to not damage the cables).
• High-performance chromium-vanadium steel.
• Head coated with insulation, to minimise the risk of contact between different potentials and short circuits.
• The insulation profile is designed to allow a sure grip with the nose with no risk of damaging the insulation.

TABLE LEGEND : Overall length tolerance : ± 10 mm of the nominal value.

MS4E 185 = Cutting capacity: Medium-hard steel wire 160 kg/mm² : Ø 1,6 mm , Length (mm): 185 , Weight (g): 330
MS4E 210 = Cutting capacity: Medium-hard steel wire 160 kg/mm² : Ø 1,6 mm , Length (mm): 210 , Weight (g): 400
