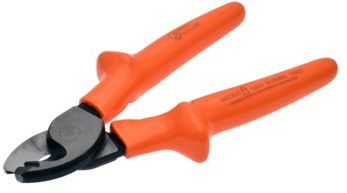

MS30S 1000V Insulated cable cutting and stripping pliers for remote energy meter

STANDARD(S) : EN 60900 / IEC 60900
USE : For cutting copper and aluminium wire with a small section.
May also be used for stripping cables with a small section.

SPECIFICATIONS :
Protective pin to avoid pinching.
Stripping function using a small notch made at the end of the jaw.
Riveted jaws.

ADVANTAGES :
• Special double-edged cutting edges for more comfort in cutting.
• The special cutting profile allows clean cutting without flattening copper and aluminium conductors, with minimum physical effort.
• Insulating reinforcements at the ends of arms for protection from impacts.
• High-performance chromium-vanadium steel.

TABLE LEGEND : Overall length tolerance : ± 10 mm of the nominal value.

MS30S 165 = Opening: 12 mm , Copper: 16 mm² , Aluminium: 35 mm² , Almele: NO , Steel: NO , Length (mm): 165 , Weight (g): 200
MS30S 200 = Opening: 16 mm , Copper: 16 mm² , Aluminium: 35 mm² , Almele: NO , Steel: NO , Length (mm): 205 , Weight (g): 340
MS30S 250 = Opening: 18 mm , Copper: 16 mm² , Aluminium: 35 mm² , Almele: NO , Steel: NO , Length (mm): 250 , Weight (g): 430
