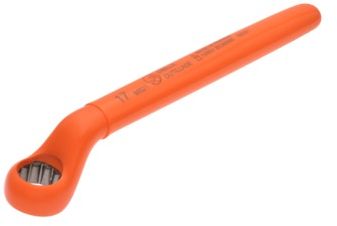

MS21 1000V Insulated single head cranked ring spanner (12 sided)

STANDARD(S) : EN 60900 / IEC 60900 / ISO 691 / ISO 1711-1 / ISO 3318 / ISO 10104
USE : The profile of the tool allows for an easy grip and optimised accessibility in installations.
SPECIFICATIONS : Compact handle, suitable for clamping forces.
ADVANTAGES : Fine insulation of the head.
TABLE LEGEND : Other dimensions available on request. Overall length tolerance : ± 5 mm of the nominal value.

MS21 06 = Diameter (mm): 6 mm , Weight (g): 50
MS21 07 = Diameter (mm): 7 mm , Weight (g): 60
MS21 08 = Diameter (mm): 8 mm , Weight (g): 60
MS21 09 = Diameter (mm): 9 mm , Weight (g): 80
MS21 10 = Diameter (mm): 10 mm , Weight (g): 80
MS21 11 = Diameter (mm): 11 mm , Weight (g): 95
MS21 12 = Diameter (mm): 12 mm , Weight (g): 100
MS21 13 = Diameter (mm): 13 mm , Weight (g): 110
MS21 14 = Diameter (mm): 14 mm , Weight (g): 130
MS21 15 = Diameter (mm): 15 mm , Weight (g): 170
MS21 16 = Diameter (mm): 16 mm , Weight (g): 190
MS21 17 = Diameter (mm): 17 mm , Weight (g): 200
MS21 18 = Diameter (mm): 18 mm , Weight (g): 230
MS21 19 = Diameter (mm): 19 mm , Weight (g): 240
MS21 20 = Diameter (mm): 20 mm , Weight (g): 300
MS21 21 = Diameter (mm): 21 mm , Weight (g): 320
MS21 22 = Diameter (mm): 22 mm , Weight (g): 320
MS21 23 = Diameter (mm): 23 mm , Weight (g): 370
MS21 24 = Diameter (mm): 24 mm , Weight (g): 400
MS21 25 = Diameter (mm): 25 mm , Weight (g): 450
MS21 26 = Diameter (mm): 26 mm , Weight (g): 460
MS21 27 = Diameter (mm): 27 mm , Weight (g): 490
MS21 28 = Diameter (mm): 28 mm , Weight (g): 510
MS21 29 = Diameter (mm): 29 mm , Weight (g): 550
MS21 30 = Diameter (mm): 30 mm , Weight (g): 530
MS21 32 = Diameter (mm): 32 mm , Weight (g): 630
MS21 01/4” = Diameter (mm): 1/4" , Weight (g): 50
MS21 05/16” = Diameter (mm): 5/16" , Weight (g): 75
MS21 03/8” = Diameter (mm): 3/8" , Weight (g): 85
MS21 07/16” = Diameter (mm): 7/16" , Weight (g): 95
MS21 01/2” = Diameter (mm): 1/2" , Weight (g): 125
MS21 09/16” = Diameter (mm): 9/16" , Weight (g): 165
MS21 19/32 = Diameter (mm): 19/32" , Weight (g): 175
MS21 05/8” = Diameter (mm): 5/8" , Weight (g): 190
MS21 11/16” = Diameter (mm): 11/16" , Weight (g): 215
MS21 3/4” = Diameter (mm): 3/4" , Weight (g): 250
MS21 13/16” = Diameter (mm): 13/16" , Weight (g): 325
MS21 07/8” = Diameter (mm): 7/8" , Weight (g): 340
MS21 15/16” = Diameter (mm): 15/16" , Weight (g): 390
MS21 1” = Diameter (mm): 1" , Weight (g): 450
MS21 1.1/16” = Diameter (mm): 1.1/6" , Weight (g): 490
MS21 1.1/8” = Diameter (mm): 1.1/8" , Weight (g): 530
MS21 1.3/16” = Diameter (mm): 1.3/16" , Weight (g): 580
MS21 1.1/4” = Diameter (mm): 1.1/4" , Weight (g): 585
MS21 1.5/16” = Diameter (mm): 1.5/16" , Weight (g): 600
