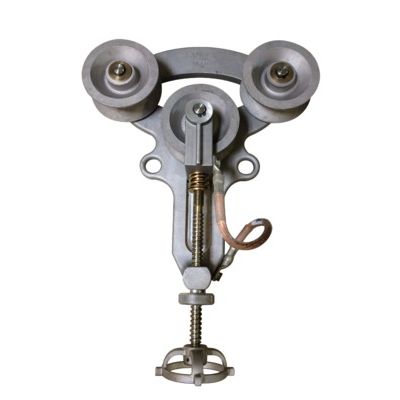

MR50 Rolling earth device for cables unreeling

STANDARD(S) : IEC 61230

USE : This device is used for the unreeling of aerial electric line cables, for low, medium and high voltage.
System equipped with 2 upper pulleys and 1 lower pulley with adjustable pressure, for always ensuring an efficient contact during the cable unreeling.
The frame and the pulleys are made of aluminum alloy.
At the back, the device can receive earth cables of TFK types equipped with connectors of 10mm diameter, mounted with stainless-steel M10 screw.
At the other end of this cable we can fit an earth clamp of various types : NB8, N3B8 or NB33…

SPECIFICATIONS :
• Tightening capacity on cylindrical conductor : from Ø 5 mm to Ø 50 mm
• Max Isc : 25 kA/1s
The set is delivered in a soft bag (ref HMALTROUL).
