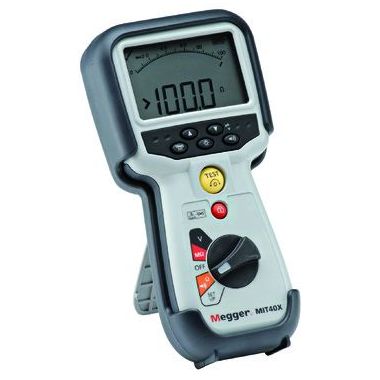

MIT400 series Insulation and continuity testers
STANDARD(S) : IEC 61326-1
SPECIFICATIONS :
CATIV 600V applications
Insulation testing to 1000V and to 200GΩ
TRMS & DC Voltage measurement
Continuity testing at 200mA down to 0.01Ω
Analogue and dual digital display
Insulation & continuity limit alarms
PI/DAR and Timer function
Test result storage
Bluetooth wireless data transfer
Free calibration certificate included
Supplied with case and leads
3 Year warranty
Power Supply : 5 x 1.5 V AA batteries
Dimensions : 220 x 92 x 50 mm
Weight : 775 g
ADVANTAGES :
• Waisted profile makes it easily held by operators with the smallest hands
• Can be used right or left-handed
MIT400 = Nominal test voltage: 250, 500, 1000 V , Insulation resistance range: 20 GΩ , Use: Industrial devices , Additional features:
MIT410 = Nominal test voltage: 50 ,100, 250, 500, 1000 V , Insulation resistance range: 100 GΩ , Use: Industrial devices , Additional features: PI and DAR
MIT415 = Nominal test voltage: 10, 25, 50, 100, 250, 500 V , Insulation resistance range: 50 GΩ , Use: Industrial devices , Additional features:
MIT420 = Nominal test voltage: 50, 100, 250, 500, 1000 V , Insulation resistance range: 200 GΩ , Use: Industrial devices , Additional features: Results storage and recall
MIT430 = Nominal test voltage: 50, 100, 250, 500, 1000 V , Insulation resistance range: 200 GΩ , Use: Industrial devices , Additional features: Results storage and recall, bluetooth transfer
MIT480 = Nominal test voltage: 50, 100 V , Insulation resistance range: 100 GΩ , Use: Services and telecommunications , Additional features:
MIT481 = Nominal test voltage: 50, 100, 250, 500, 1000 V , Insulation resistance range: 200 GΩ , Use: Services and telecommunications , Additional features: Result storage
