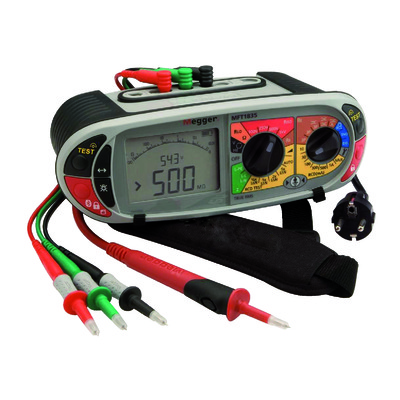

MFT1825 Multifunction installation tester

STANDARD(S) : IEC 61010 CAT IV 300 V /EN 61557

USE : Designed for testing low voltage electrical installations. It provides all the tests required to complete the necessary electrical certification for industrial, commercial and domestic fixed wiring installations.

SPECIFICATIONS :
Insulation test 250/500/1000V
Continuity resistance at 200 mA
RCD testing including: Type AC, A, S and programmable RCDs 1/2 x I, 1 x I, 2 x I and 5 x I. Test values 10/30/100/300/500/1000mA)
Earth testing (by earth loop)
Earth testing (by spikes)
Voltage measurement/frequency

ADVANTAGES :
• Simple colour-coded test selection and large clear backlit display for ease of use
• Non-trip loop test
• EN 61010 CATIV safety ratings and tough IP54 case
