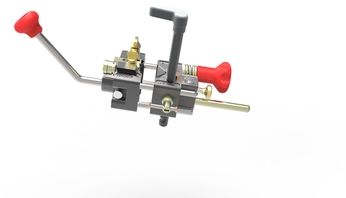

MF3-C Multifunction tools for sheath, peelable semiconductor with chamfer and insulation

STANDARD(S) : Compatible with C33-226, UTE C33-223, NF C 33-223, HN33S23

USE :
MF3/40-C and MF3/60-C are adjustable multifunction tools that allow :
- the removal PE-PVC-PR cable's outer sheath to the required length with a neat and straight cut
- to score and remove the peelable semiconductor with straight semicon cutback
- the removal of EPR, XLPE cable's insulation to the required length with a neat and straight cut

SPECIFICATIONS :
Fast disassembling handle.
MF3/40-C for cables from Ø 16 to 40 mm (25 to 240 mm²).
MF3/60-C for cables from Ø16 to 58 mm (25 to 630 mm²).
Remaining length of semiconductor :
- 30, 40, 45 mm for MF3/40-C
- 30, 40, 45, 50, 55 mm for the MF3/60-C.

ADVANTAGES : Setting of the tool advance (shaving thickness).

MF3/40-C = Length (mm): 165 , Width (mm): 80 , Height (mm): 100 , Weight (g): 1.52
MF3/60-C = Length (mm): 185 , Width (mm): 90 , Height (mm): 120 , Weight (g): 1.65
