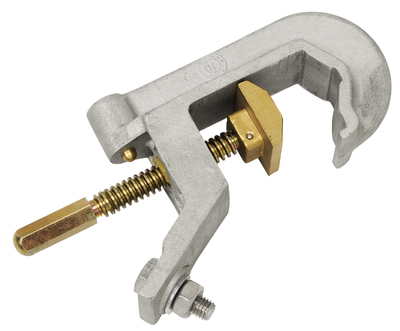

Line clamps for PIMT device

STANDARD(S) : IEC 61230

SPECIFICATIONS :
The MT525 has the particularity of being hinged, enabling it to be installed on cylindrical conductors in all configurations up to 90°.
The MT535 and MT516 are for mixed use on flat and cylindrical conductors.
The MT416 clamp is for flat bars.
M10 stainless steel screws included.

ADVANTAGES : Lightweight, compact clamps. With the AP end fitting, they are fitted with an anti-rotation brake to prevent them rotating during installation.

TABLE LEGEND : Also available in the standard version with these end fitting: M (handle) and CR (ring for hooked stick) on the MT535 clamp only. Other end fittings available on request.

MT516AP = Clamp: MT516 , End fitting: AP , Capacity on cylindrical connectors (mm): Ø 8 - 19 , Capacity on flat conductors (mm): 0 - 19 , Max. Isc: 20 kA/1s , Material: Alu
MT416AP = Clamp: MT416 , End fitting: AP , Capacity on cylindrical connectors (mm): - , Capacity on flat conductors (mm): 40 - 16 , Max. Isc: 18 kA/1s , Material: Alu
MT525AP = Clamp: MT525 , End fitting: AP , Capacity on cylindrical connectors (mm): Ø 5 - 35 , Capacity on flat conductors (mm): - , Max. Isc: 14.5 kA/1s , Material: Cupro - alu
MT535AP = Clamp: MT535 , End fitting: AP , Capacity on cylindrical connectors (mm): Ø 5 - 35 , Capacity on flat conductors (mm): 16 - 40 and 5 - 40 , Max. Isc: 31,5 kA/1s , Material: Alu
MT535B = Clamp: MT535 , End fitting: B , Capacity on cylindrical connectors (mm): Ø 5 - 35 , Capacity on flat conductors (mm): 16 - 40 and 5 - 40 , Max. Isc: 31,5 kA/1s , Material: Alu
MT525B = Clamp: MT525 , End fitting: B , Capacity on cylindrical connectors (mm): Ø 5 - 35 , Capacity on flat conductors (mm): - , Max. Isc: 14,5 kA/1s , Material: Cupro - alu
