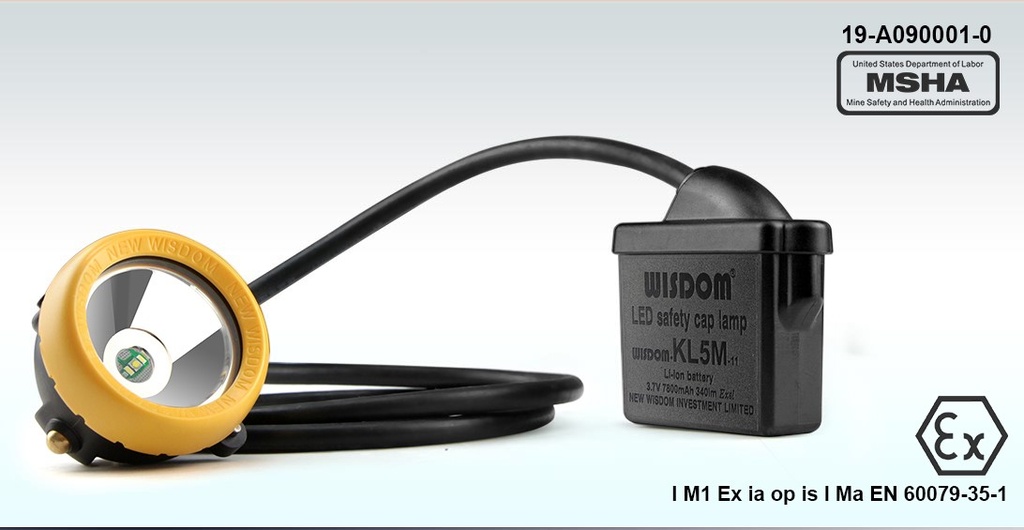

KL5M ATEX M1 Corded miner's cap lamp
Rechargeable.
Explosion-proof, MSHA and ATEX M1.
Water-proof, IP68.
For industrial mining lighting
Professional LED miner's cap lamp, brightness of 18000 lux, 13 hours run-time
(Standard version). Safe, reliable, long life span of 80000 h. IP68 diving certificated.
18000 lux brightness!
Bright the underground mine!
18000 lux is 3 times brighter than the normal LED miner's cap lamp with cable.
Super bright assist the underground mining, very good lighting conditions.
7800 mAh high capacity li-ion battery
High capacity li-ion battery make sure 13 hours run-time for option, to meet the demand of longer run-time in the underground.
IP68 water proof certificated diving to more than 20 meters
IP68—the highest level waterproof certification standard for connectors.
KL5M is workable in a long time under water of 20 meters!
Charge full with four hours
Special charger designed for KL5M Miner's Cap Lamp,
rapid and safe, longer battery service life.
KL5M
1.4 and 1.65 m cable for option, standard version, super bright and super long run-time versions.
Most advanced and the brightest LED light of Cree company of 340 lumens, 18000 lux (standard version) in one meter distance.
KL5M Technical Specifications
Features	KL5M Specifications
Version	KL5M Standard	KL5M Long	KL5M Super Long	KL5M MSHA
Rated capacity	7800 mAh	8700 mAh
Rated voltage	3.7 V
Continuous discharging time	13 h	16 h	24 h	16 h
Main light LED working voltage	3.0 V
Main light LED working current	640 mA	500 mA	380 mA	350 mA
Main light power	1.92 W	1.5 W	1.14 W	1.1 W
Main light luminous flux	340 lm	279 lm	229 lm	145 lm
Lamp lighting degree (Initial lighting degree in 1 m)	18000 lx	14000 lx	11000 lx	8700 lx
Main light life span	50000 h
Auxiliary light power	0.4 W
Auxiliary light life span	40000 h
Short circuit protect time	< 320 μs
Life span of the battery (Recharges)	1200 cycles (In reasonable working condition)
Charging time	4-6 hours	4-7.5 hours
Dimensions	94 x 36 x 85 mm; 3.7 x 1.4 x 3.3 in (Size of the battery box)
Main cable	1.4 / 1.65 m; 4.59 / 5.41 ft
Weight	500 g; 17.64 oz
| Capacity/Size | Standard or Long |
