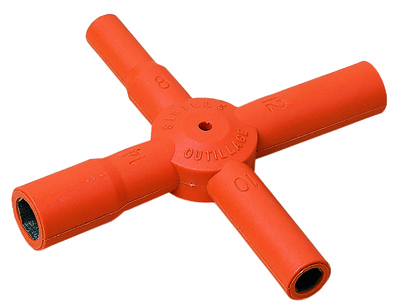

IS39 1000V Hybrid insulated female hexagonal cross spanner

STANDARD(S) : EN 60900 / IEC 60900 / ISO 691
USE : For tightening nuts with a protruding threaded shank.
Generally used for implementation of insulation piercing connectors (in particular dimensions 13 and 17 mm).

SPECIFICATIONS : Tool with 4 hexagonal sockets, in heat treated alloy steel, injected.
Insulating material with Fiberglass for maximum strength.
The "cross" shape allows easier transmission of the tightening torque.
An insulating monobloc core avoids any electrical continuity between the different working heads. The dimension is marked on each working head.
« Hybrid » insulated hand tool category (= hand tool made from insulating material with exposed conductive parts at the working head).

TABLE LEGEND : Overall length tolerance : ± 5 mm of the nominal value.

IS39 6X8X10X12 = Diameter (mm): 6 x 8 x 10 x 12 , Length (mm): 150 , Weight (g): 160
IS39 7X9X11X13 = Diameter (mm): 7 x 9 x 11 x 13 , Length (mm): 150 , Weight (g): 200
IS39 8X10X12X14 = Diameter (mm): 8 x 10 x 12 x 14 , Length (mm): 150 , Weight (g): 220
IS39 8X10X13X17 = Diameter (mm): 8 x 10 x 13 x 17 , Length (mm): 150 , Weight (g): 300
IS39 14X17X19X21 = Diameter (mm): 14 x 17 x 19 x 21 , Length (mm): 150 , Weight (g): 440
IS39 10X13X14X17 = Diameter (mm): 10 x 13 x 14 x 17 , Length (mm): 150 , Weight (g): 380
