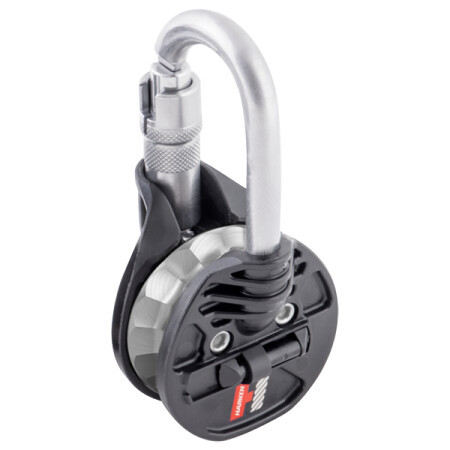

INSN65.R SNATCHET (RATCHETING)

This product’s name says it all. Snatchet pushes together the ease and familiarity of carabiner rigging with a high-efficiency pully to create a very flexible piece of powerful yet compact lifting equipment. Available so that you have a choice between ratcheting and non-ratcheting versions, Snatchet can be inserted into the middle of an existing rig eliminating the need to take the load off a loaded line and rerig. Robust carabiners and wide stainless sheaves rig easily and provide uncommon flexibility.

Rope can be engaged without disconnecting the anchor point.
Large pulley diameter reduces friction and rope stress.
No risk of misalignment between pulley and carabiner that could break the system.
Faceted sheave in ratchet version provides 15X the rope holding power of a round sheave
Ratchet version can be “activated/deactivated” under load.

Height (mm) 72 mm
Width (mm) 146.5 mm
Weight (g) 178 g
Maximum line Ø (mm) 14 mm
Breaking load (kN) 38 kN
Maximum working load (kN) 10 kN

HARKEN INDUSTRIAL

Harken Industrial™ is a division of Harken, Inc.®, a privately held company with more than 50 years of experience at the technological front of the sailing equipment industry. Building upon this background, Harken Industrial has developed industrial equipment that can withstand the harshest environmental conditions.
