INLH500KIT.C Winch LokHead 500KIT Compact

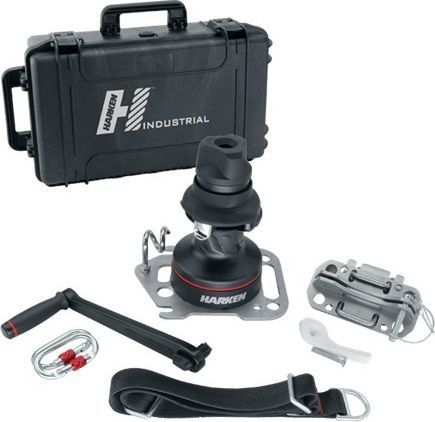

The innovative LokHead winch is a portable or fix-mounted load-lifting, personnel-hoisting winch used with an unlimited length of fiber rope. The captive head allows the winch to be used safely, and keeps the rope from accidentally releasing. Perfect for fixed or temporary applications and rescue. Harken Industrial offers the LokHead and its accessories fully boxed in a heavy-duty storage case that allows safe transport and rapid deployment. The kit includes the LokHead winch with reversible plate, winch handle, universal tripod adapter, control lever, 2 carabiners, waterproof case and anchor strap with connectors to offer a variety of mounting options: clamped to tripods, rigged to ropes/strops, or anchored direct to structures. Spare parts available from any Harken Industrial dealer. The simple construction requires no lubrication and can be flushed clean with fresh water.

INLH500KIT.C parts:
1. Knob
2. Cover
3. Stripper arm
4. Drum
5. Pulleys
6. Removeable skirt
7. Plate
8. Pig tail
9. Tripod Adapter
10. Handle
11. Handle lock
12. Control Lever
13. Self locking pin

Reliable
The braking system controls descent and provides workers protection against free-falls. The encapsulating jaw cover protects fingers and clothing from catching in the winch.

Versatile
The winch is designed for use with fiber rope 10 –12.7 mm (3/8 –1/2″) in diameter and unlimited line length.

Lightweight
The LokHead winch and mounting bracket can be incorporated into a rescue/lifting system without significantly increasing overall weight.

Ergonomic
LokHead makes the most of the operator’s efforts. The winch offers two gears; 13.5:1 for low load/high speed use and 39.90:1 for higher load/low speed applications.

Drive flexibility
The winch can be driven manually with the provided B10AL handle. Alternatively, use a compatible power drill with the power tool adapter (sold separately) to drive the winch when lifting goods and equipment. Not EN13157 compliant.

Weight (lb) 30 lb
Maximum line Ø (mm) 12.7 mm
Maximum line Ø (in) 1/2 in
Minimum line Ø (mm) 10 mm
Minimum line Ø (in) 3/8 in
Weight (kg) 13.6 kg
Weight of winch only (lb) 12.3 lb
Weight of winch only (kg) 5.6 kg
Maximum working load for goods/equipment (kN) 4.9 kN
Maximum working load for goods/equipment (kg) 500 kg
Maximum working load for goods/equipment (lb) 1102 lb
Maximum working load for human suspension (kN) 2.4 kN
Maximum working load for human suspension (kg) 240 kg
Maximum working load for human suspension (lb) 529 lb
Power ratio with 254 mm/10" winch handle 13.5:1/39.9:1
