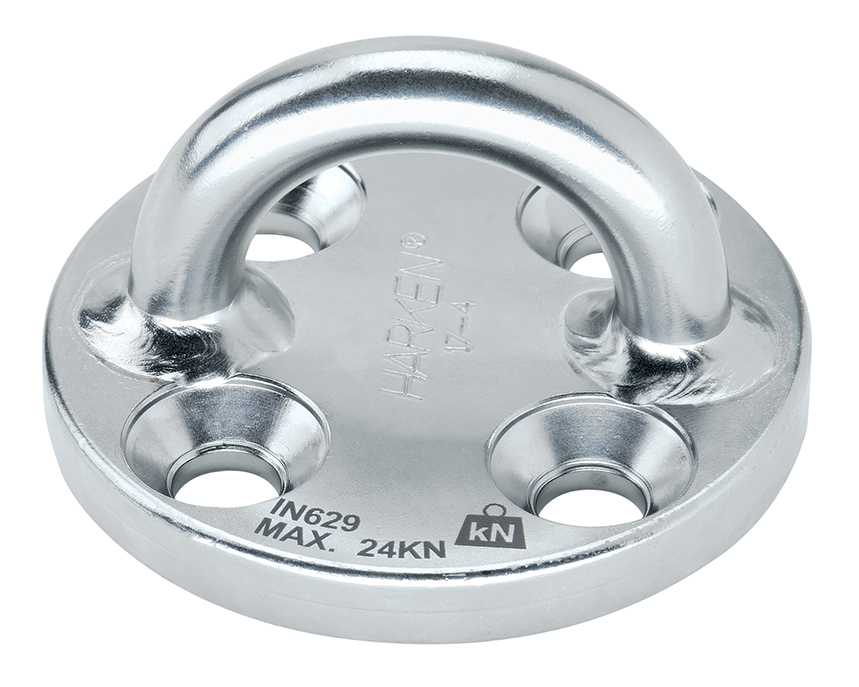

IN629 95 mm Stainless Steel Round Standard Padeye

The IN629 17-4PH stainless steel round anchorage point is designed to be permanently installed on a structure so that an anchor device, or personal protective equipment can be attached to it, facilitating safe working at height. It is large enough to allow free movement of attachments and will accommodate carabiners.

A (mm) 95 mm
A (in) 3 3/4 in
C (mm) 44 mm
C (in) 1 3/4 in
D (mm) 48 mm
D (in) 1 7/8 in
E (mm) 51 mm
E (in) 2 in
F (mm) 27 mm
F (in) 1 1/16 in
G (mm) 44 mm
G (in) 1 3/4 in
Weight (g) 652 g
Weight (oz) 23 oz
Maximum rated load (kN) 24 kN
Breaking load (kN) 96 kN
Fasteners (mm) 12 FH mm
Fasteners (in) 1/2 FH in
Maximum number of users 5

HARKEN INDUSTRIAL

Harken Industrial™ is a division of Harken, Inc.®, a privately held company with more than 50 years of experience at the technological front of the sailing equipment industry. Building upon this background, Harken Industrial has developed industrial equipment that can withstand the harshest environmental conditions.
