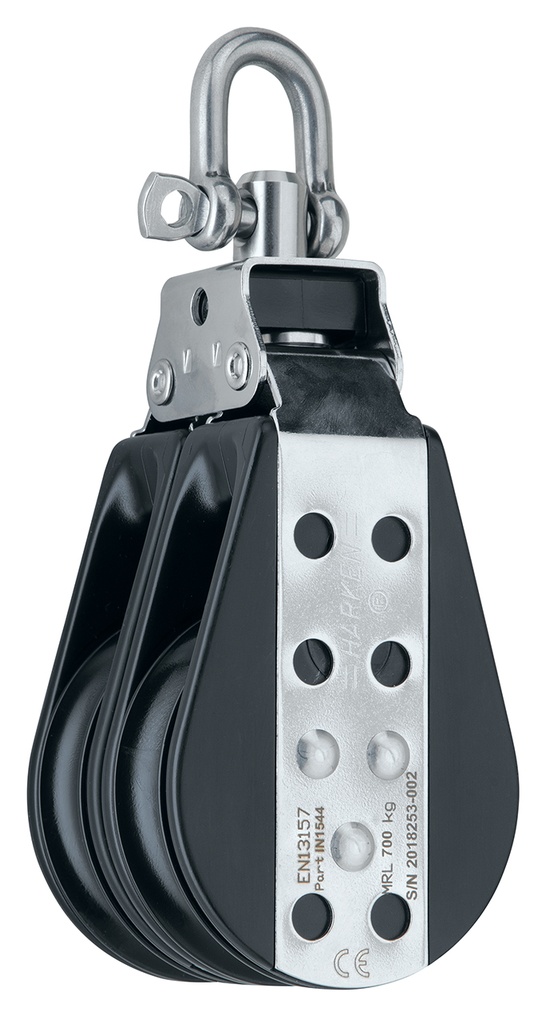

IN1544 76 mm Classic Double Pulley - Swivel

These robust pulleys are ideal for handling high loads. Free-running Delrin® ball bearings roll on flat races to allow fast haul and release under high or low loads. Pulley shackle locks in two directions or swivels to keep rope from twisting. The simple construction requires no lubrication. Simply flush with fresh water to keep bearings free rolling. CE certified. Delrin is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.

Pulley shackle locks in two directions or swivels to keep rope from twisting.

These robust pulleys are ideal for handling high loads. Free-running Delrin® ball bearings roll on flat races to allow fast haul and release under high or low loads. Metal and composite construction.

CE certified to EN13157 for hand-operated lifting equipment.

Sheave Ø (mm)	76 mm
Sheave Ø (in)	3 in
Length (mm)	191 mm
Length (in)	7 1/2 in
Weight (g)	723 g
Weight (lb)	1.59 lb
Shackle pin Ø (mm)	8 mm
Shackle pin Ø (in)	5/16 in
Maximum line Ø (mm)	14 mm
Maximum line Ø (in)	9/16 in
Maximum rated load (kN)	7 kN
Maximum rated load (lb)	1573 lb
Rope type	Fiber
