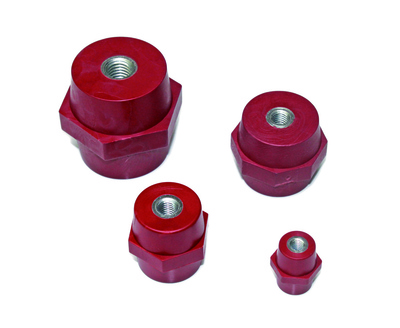

IFFM Polyester fibreglass insulators (female/female)

SPECIFICATIONS : Self extinguishing (standard UL-94)
Operating temperature : -40°C up to +130°C
Water absorption ASTM570 : <0.2%
Tracking resistance ASTMD2302 : 3W/min

IFFM635 = Height (mm): 35, Thread size and depth: M6 x 10 , Operating voltage (V): 750 , Rated withstand voltage (kV): 10 , Minimum flashover voltage (kV): 40 , Sold in packs of: 25 , Weight (g): 100
IFFM835 = Height (mm): 35, Thread size and depth: M8 x 10 , Operating voltage (V): 750 , Rated withstand voltage (kV): 10 , Minimum flashover voltage (kV): 40 , Sold in packs of: 25 , Weight (g): 100
IFFM850 = Height (mm): 50, Thread size and depth: M8 x 15 , Operating voltage (V): 1500 , Rated withstand voltage (kV): 12 , Minimum flashover voltage (kV): 40 , Sold in packs of: 10 , Weight (g): 200
IFFM1050 = Height (mm): 50, Thread size and depth: M10 x 15 , Operating voltage (V): 1500 , Rated withstand voltage (kV): 12 , Minimum flashover voltage (kV): 40 , Sold in packs of: 10 , Weight (g): 200
IFFM1250 = Height (mm): 50, Thread size and depth: M12 x 15 , Operating voltage (V): 1500 , Rated withstand voltage (kV): 12 , Minimum flashover voltage (kV): 40 , Sold in packs of: 10 , Weight (g): 200
IFFM1280 = Height (mm): 80, Thread size and depth: M12 x 25 , Operating voltage (V): 3600 , Rated withstand voltage (kV): 25 , Minimum flashover voltage (kV): 50 , Sold in packs of: 4 , Weight (g): 250
