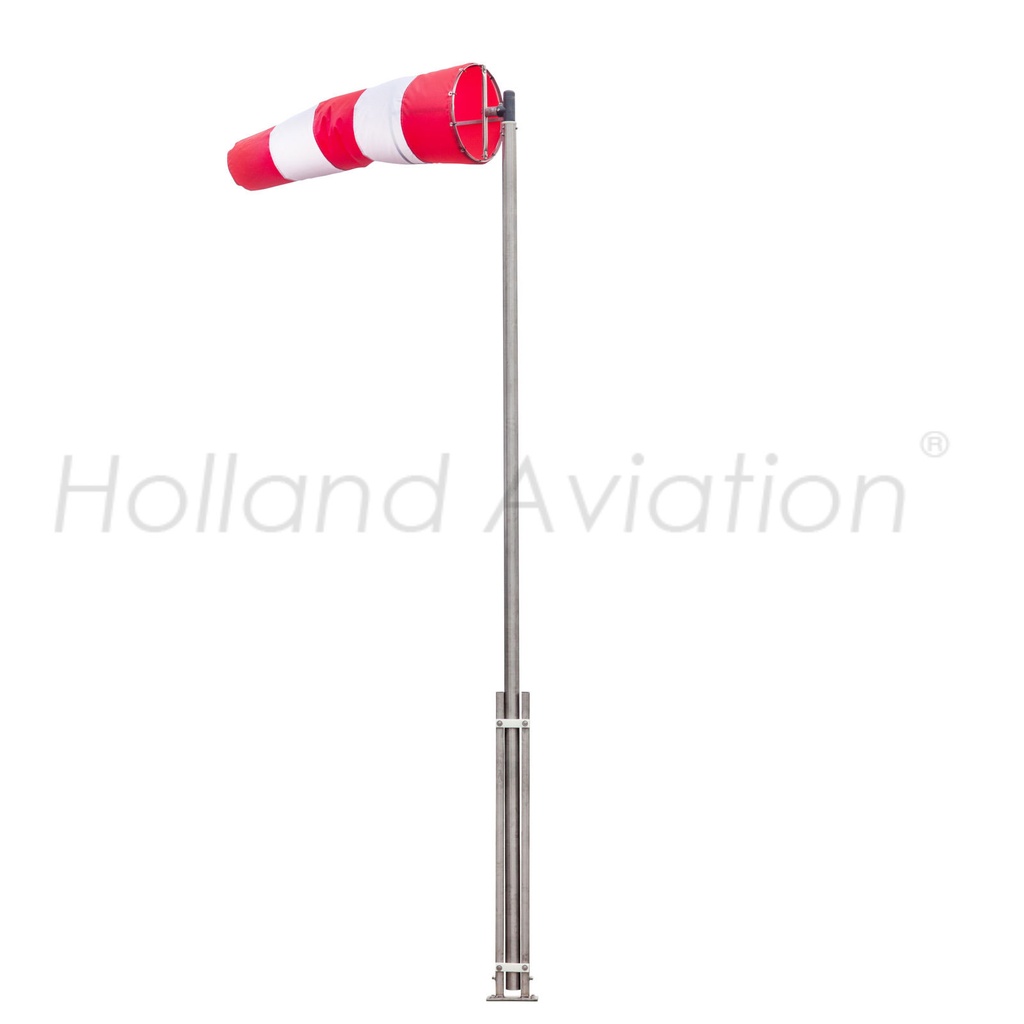

HA-80RG Windsock assembly, Rigid mast (4.8m)

The HA-80 RG is a rigid wind direction and wind speed indication. The reliable illumination system (if present) is fixed and therefore has no rotating electric parts or slip-rings. Due to its unique design maintenance cost and power consumption are low. The tiltable mast structure enables easy replacement of the windsock.

MAST DIAMETER 80mm
MAST LENGHT Standard: 4800mm (or any other lenght on request max 5800m)
MAST MATERIAL T50 aluminium (brute or powder coated)
WINDSOCK Ø30cm up to and including Ø50cm, colour red/white (ICAO) or orange (FAA), double stitched with reinforced front hem and grommets.
WINDSOCK MATERIAL Polyester, PU coated, approx. 185 gr/m²
WINDSOCK FRAME MATERIAL Stainless steel AISI 316L
SWIVEL HEAD 2 heavy duty sealed stainless steel bearings
MAST SUPPORT AND FOUNDATION MATERIAL Galvanised steel
LIGHTING STYLES Unlighted, externally lighted, internally lighted
POWER SUPPLY 90-240VAC or 6,6A
POWER CONSUMPTION Internal Lighting: 12 Watt
External Lighting: 40 Watt
Obstruction Light: 5 Watt
INGRESS PROTECTION IP65
AMBIENT TEMPERATURE -40°C to +60°C

COMPLIANCES
ICAO Annex 14 Vol. I Aerodromes
ICAO Annex 14 Vol. II Heliports
FAA AC150/5345-27
UK CAA CAP 168 and CAP 437
EASA ADR
EASA CS-HPT-DSN

WINDSOCK SIZES
Ø300 x 1200mm Ø450 x 2450mm
Ø300 x 1500mm Ø500 x 1500mm
Ø300 x 1800mm Ø500 x 1500mm with push button
Ø400 x 2500mm Ø18” x 8ft (FAA size 1)
Or any other custom made size

The HA windsock sleeves have been proven to withstand wind speeds in excess of 145 km/h (75 knots). The windsock fabrics have been tested for mechanical strength, UV resistance and colour fastness by an independent laboratory.
